Centric 123.45022 - C-Tek Standard Brake Drum
$8699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

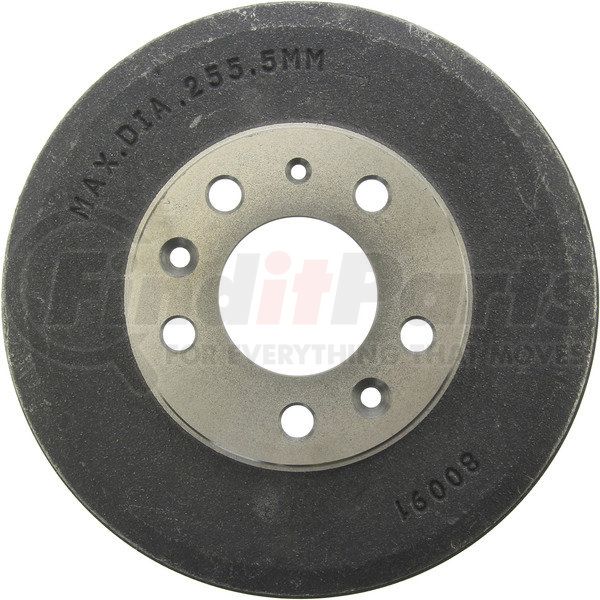

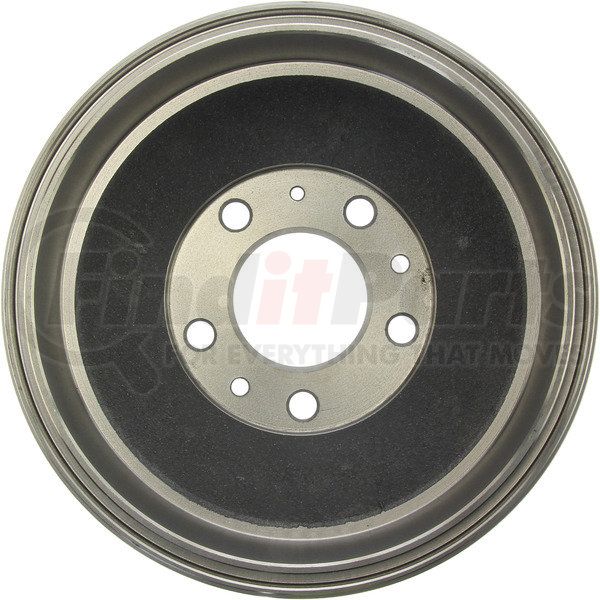

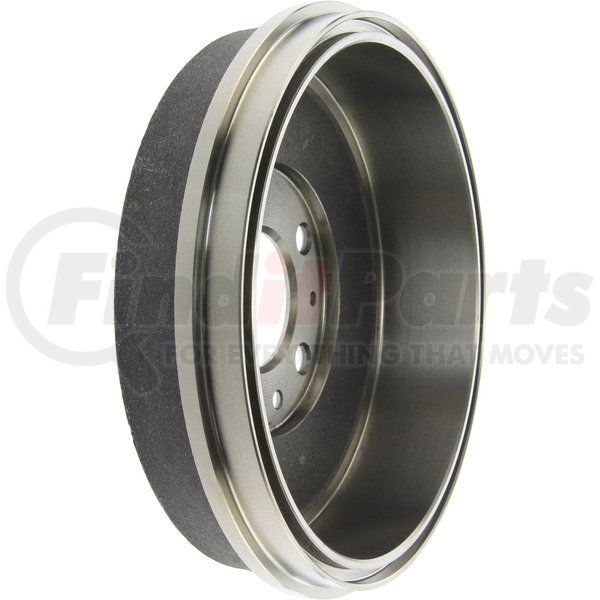

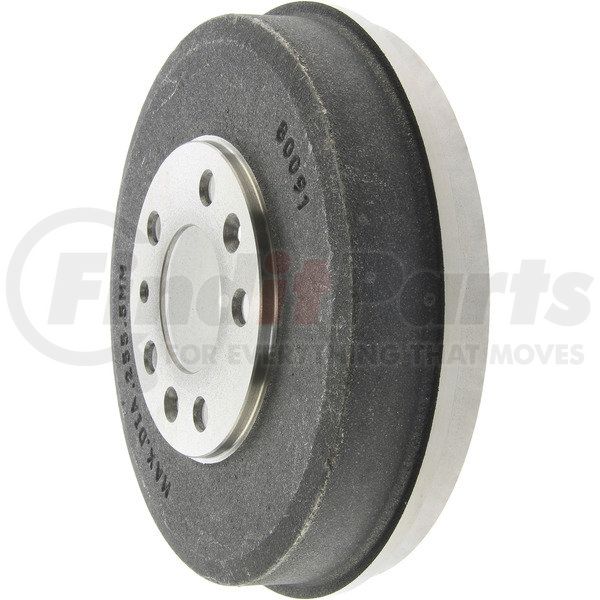

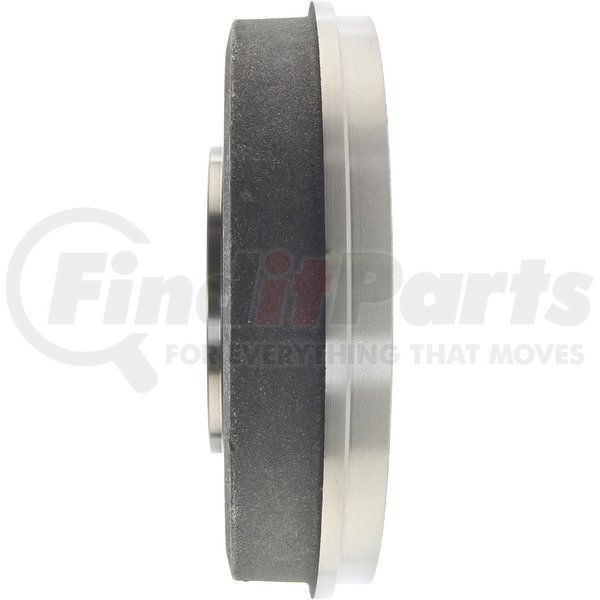

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 8.523 |
| Weight [cntrc] Lbs | 18.750 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 72.000 |
| Hub Hole / Register [cntrc] In | 2.835 |
| Height [cntrc] Mm | 78.200 |
| Height [cntrc] In | 3.079 |
| Friction Surface Width [cntrc] Mm | 61.500 |
| Friction Surface Width [cntrc] In | 2.421 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 255.500 MM |
| Maximum Brake Diameter (Discard) | 10.060 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 295.000 MM |
| Outside Diameter | 11.614 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.750 MM |
| Mounting Hole Diameter | 0.541 IN |
| Nominal Drum Diameter | 253.700 MM |
| Nominal Drum Diameter | 9.988 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890077428 |
Part Interchanges
CENTRIC 123.45022 Cross Reference
We have 3 alternatives for the 123.45022 by CENTRIC:
Fits Vehicles
- Mazda MPV (2000-2003)
