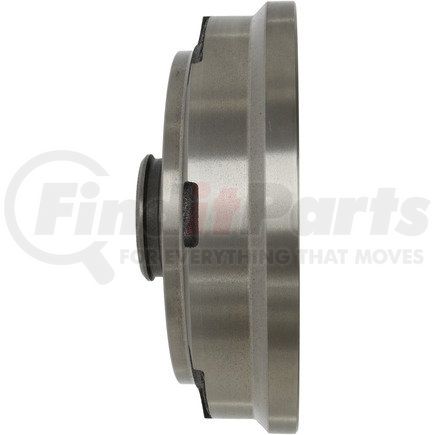

Centric 123.45016 - C-Tek Standard Brake Drum
$2949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 3.636 |
| Weight [cntrc] Lbs | 8.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 59.200 |
| Hub Hole / Register [cntrc] In | 2.331 |
| Height [cntrc] Mm | 70.000 |
| Height [cntrc] In | 2.756 |
| Friction Surface Width [cntrc] Mm | 34.500 |
| Friction Surface Width [cntrc] In | 1.358 |
| Product Grade [cntrc] | Standard |
| Stud Thread Size | 12 MM |
| Maximum Brake Diameter (Discard) | 170.500 MM |
| Maximum Brake Diameter (Discard) | 6.713 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 194.000 MM |
| Outside Diameter | 7.638 IN |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 170.000 MM |
| Nominal Drum Diameter | 6.693 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051954 |
Part Interchanges
CENTRIC 123.45016 Cross Reference
We have 4 alternatives for the 123.45016 by CENTRIC:
Fits Vehicles
- Ford Festiva (1988-1993)
