CENTRIC 123.44043 Part Description
Manufacturer
Product Description

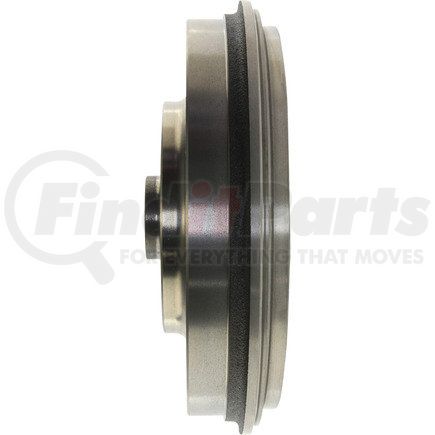

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.44043 Specifications
Product Attributes
| Misc Holes [cntrc] | 7 |
| Weight [cntrc] Kgs | 6.364 |
| Weight [cntrc] Lbs | 14.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 45.000 |
| Hub Hole / Register [cntrc] In | 1.772 |
| Height [cntrc] Mm | 81.500 |
| Height [cntrc] In | 3.209 |
| Friction Surface Width [cntrc] Mm | 46.000 |
| Friction Surface Width [cntrc] In | 1.811 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 229.600 MM |
| Maximum Brake Diameter (Discard) | 9.039 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 272.000 MM |
| Outside Diameter | 10.709 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890076377 |
CENTRIC 123.44043 Cross References
CENTRIC 123.44043 Fits Vehicles
- Toyota Matrix (2003-2006)
- Pontiac Vibe (2003-2006)
