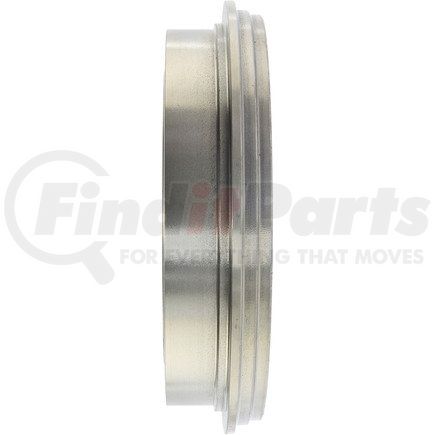

Centric 123.44039 - C-Tek Standard Brake Drum
$3349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 2.955 |
| Weight [cntrc] Lbs | 6.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 55.000 |
| Hub Hole / Register [cntrc] In | 2.165 |
| Height [cntrc] Mm | 47.300 |
| Height [cntrc] In | 1.862 |
| Friction Surface Width [cntrc] Mm | 37.500 |
| Friction Surface Width [cntrc] In | 1.476 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 181.000 MM |
| Maximum Brake Diameter (Discard) | 7.126 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 220.000 MM |
| Outside Diameter | 8.661 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890209676 |
Part Interchanges
CENTRIC 123.44039 Cross Reference
We have 1 alternatives for the 123.44039 by CENTRIC:
Fits Vehicles
- Toyota Echo (2000-2005)
