Centric 122.67039 - Centric Premium Brake Drum
$18749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

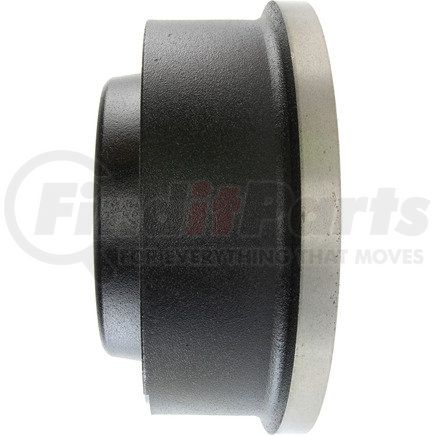

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Weight [cntrc] Kgs | 19.091 |
| Weight [cntrc] Lbs | 42.000 |
| Mounting Type [cntrc] | Behind the Hub |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 122.936 |
| Hub Hole / Register [cntrc] In | 4.840 |
| Height [cntrc] Mm | 159.766 |
| Height [cntrc] In | 6.290 |
| Friction Surface Width [cntrc] Mm | 103.124 |
| Friction Surface Width [cntrc] In | 4.060 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 310.000 MM |
| Maximum Brake Diameter (Discard) | 12.205 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 359.918 MM |
| Outside Diameter | 14.170 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.764 MM |
| Mounting Hole Diameter | 0.660 IN |
| Nominal Drum Diameter | 308.000 MM |
| Nominal Drum Diameter | 12.125 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890166504 |
Part Interchanges
CENTRIC 122.67039 Cross Reference
We have 4 alternatives for the 122.67039 by CENTRIC:
Fits Vehicles
- Dodge Ram 2500 (2000)
