(888) 312-8812 Login SignupFRAM TG10323 Cartridge Oil Filter
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM TG10323 Part Description
Manufacturer
Product Description
FRAM, TG10323, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

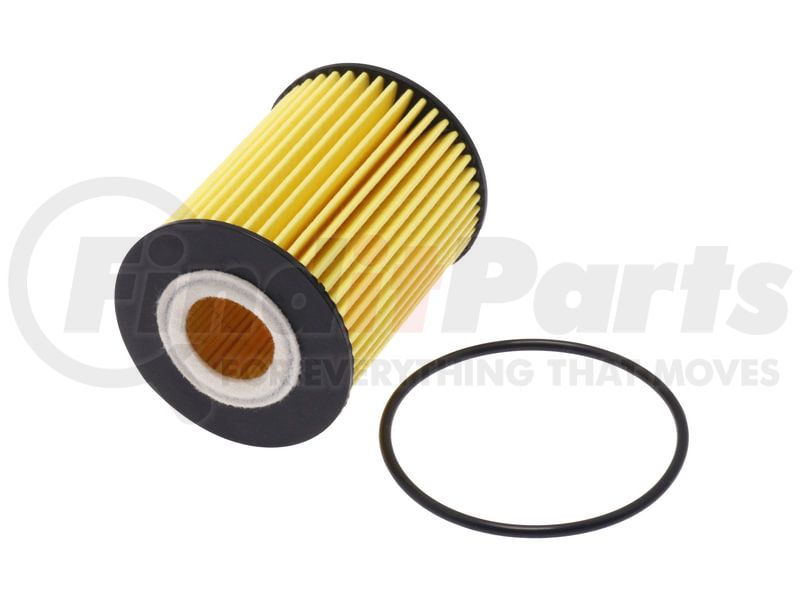

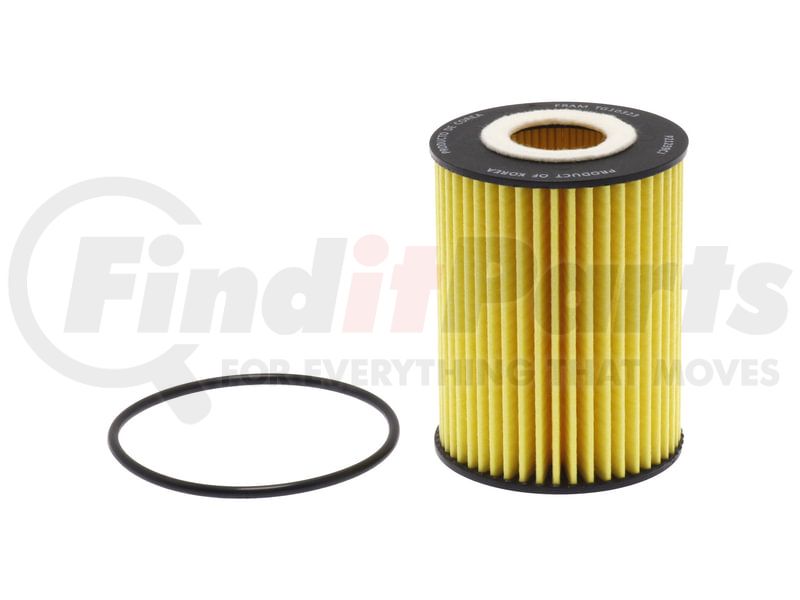

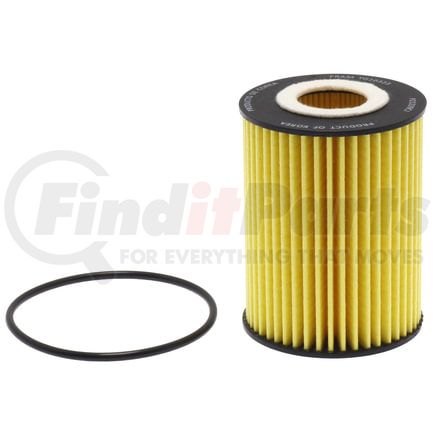

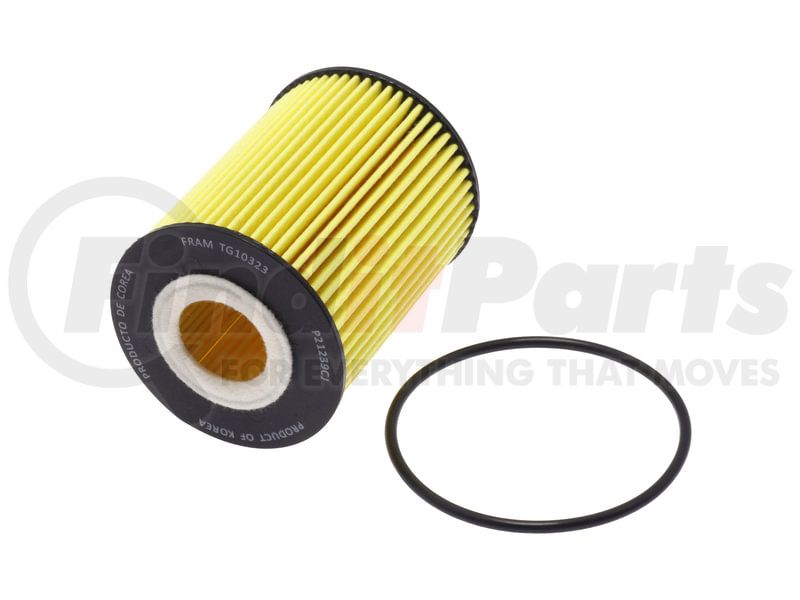

Cartridge Oil Filter
Cartridge Oil Filter
FRAM TG10323 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.72 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Premium |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.082 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.236 IN |
| O-ring (1) Outside Diameter | 0.326 IN |
| O-ring (1) Thickness | 0.09 IN |
| O-ring Inside Diameter | 3.228 IN |
| O-ring Outside Diameter | 3.365 IN |
| O-ring Thickness | 0.137 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.854 in |
| Outer Diameter Top | 2.854 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.082 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 1.082 IN |
| Grade Type | Premium |
| Outside Diameter Top | 2.854 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100575937 |
| UNSPSC | 15121501 |
FRAM TG10323 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF6001G, PF601G |
| Bosch | 72263WS |
| Carquest | 84062 |
| Carquest Premium Filters | 84062 |
| Champ | P3969 |
| Chrysler | 05175571AA, 5175571AA |
| ECOGARD | X5646 |
| FRAM | CH10323 |
| FRAM Drive | FD10323 |
| FRAM Tough Guard | TG10323 |
| FVP | G7062 |
| Factory Motor Parts | G7062 |
| Fleetguard | LF16231 |
| Freightliner | 6421800009 |
| Group 7 | V5646 |
| Hastings | LF628 |
| Hengst | E71HD141 |
| LUBER-FINER | P3969 |
| MAHLE | OX380DECO |
| Mann-Filter | HU821, HU821/X, HU821X |
| Mercedes-Benz | 642 180 0009, 642 184 0025, A642 180 0009, A642 184 0025 |
| MicroGard | MGL57062 |
| NAPA | 7062 |
| Parts Master | 67062 |
| Pennzoil | PZ206 |
| Pentius | PCB10323 |
| Premium Guard | PG5646 |
| Promotive | PH5646 |
| Pronto | PO-5646 |
| PureZone | 8-57062 |
| Purolator | L25646, L90003 |
| STP | S10323, S10323XL |
| STP Filters | S10323, S10323XL |
| Security Filters | CH-10323 |
| Service Champ | CF5646 |
| Valvoline | VO-129 |
| Warner | WP3969 |
| Warner Filters | WP3969 |
| Wix | 57062 |
FRAM TG10323 Fits Vehicles
- Freightliner Sprinter 2500 (2007-2019)
- Freightliner Sprinter 3500 (2007-2019)
- Suzuki Aerio (2002)
- Mercedes-Benz Sprinter 3500XD (2019-2022)
- Mercedes-Benz GLS350d (2017)
- Mercedes-Benz GLE350d (2016)
- Mercedes-Benz S350 (2012-2013)
- Mercedes-Benz E350 (2011-2013)
- Mercedes-Benz Sprinter 2500 (2010-2022)
- Mercedes-Benz Sprinter 3500 (2010-2022)
- Mercedes-Benz ML350 (2010-2014)
- Mercedes-Benz GL350 (2010-2016)
- Mercedes-Benz R350 (2010-2013)
- Dodge Sprinter 2500 (2007-2009)
- Dodge Sprinter 3500 (2007-2009)
- Mercedes-Benz GL320 (2007-2009)
- Mercedes-Benz E320 (2007-2009)
- Mercedes-Benz R320 (2007-2009)
- Mercedes-Benz ML320 (2007-2009)
- Jeep Grand Cherokee (2007-2009)
