(888) 312-8812 Login SignupCENTRIC 122.66010 Prm Brake Drum
Tap to view 1 more
$155.31
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.66010 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

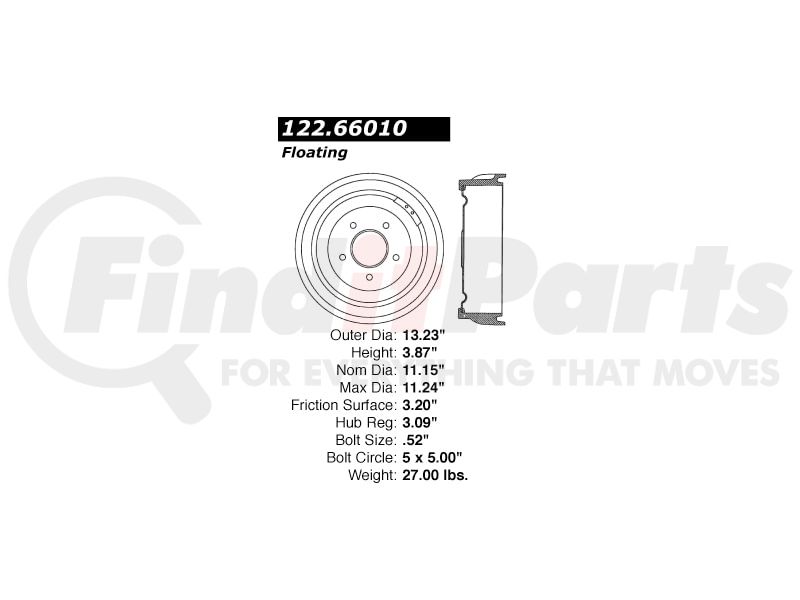

CENTRIC 122.66010 Specifications
Product Attributes
| Weight [cntrc] Kgs | 12.273 |
| Weight [cntrc] Lbs | 27.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 98.298 |
| Height [cntrc] In | 3.870 |
| Friction Surface Width [cntrc] Mm | 81.280 |
| Friction Surface Width [cntrc] In | 3.200 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 336.042 MM |
| Outside Diameter | 13.230 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.210 MM |
| Mounting Hole Diameter | 0.520 IN |
| Nominal Drum Diameter | 283.200 MM |
| Nominal Drum Diameter | 11.150 IN |
