CENTRIC 122.65011 Part Description
Manufacturer
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

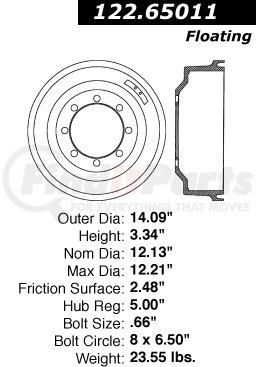

CENTRIC 122.65011 Specifications
Product Attributes
| Weight [cntrc] Kgs | 10.705 |
| Weight [cntrc] Lbs | 23.550 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 127.000 |
| Hub Hole / Register [cntrc] In | 5.000 |
| Height [cntrc] Mm | 84.836 |
| Height [cntrc] In | 3.340 |
| Friction Surface Width [cntrc] Mm | 62.992 |
| Friction Surface Width [cntrc] In | 2.480 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 310.100 MM |
| Maximum Brake Diameter (Discard) | 12.210 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 357.886 MM |
| Outside Diameter | 14.090 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.764 MM |
| Mounting Hole Diameter | 0.660 IN |
| Nominal Drum Diameter | 308.000 MM |
| Nominal Drum Diameter | 12.125 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890038269 |
CENTRIC 122.65011 Cross References
CENTRIC 122.65011 Fits Vehicles
- Ford F-250 (1969-1976)
