CENTRIC 122.63016 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

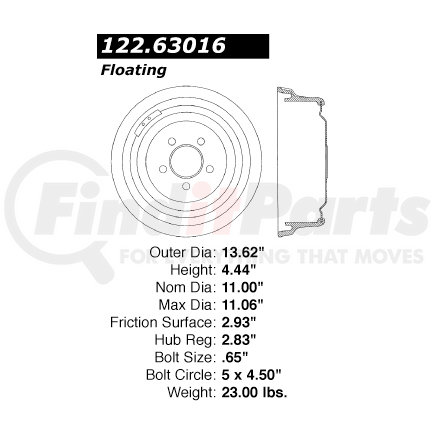

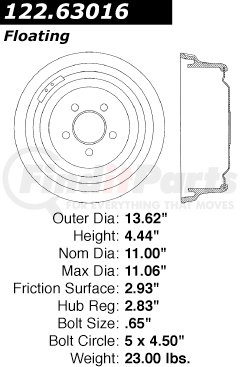

CENTRIC 122.63016 Specifications
Product Attributes
| Weight [cntrc] Kgs | 10.455 |
| Weight [cntrc] Lbs | 23.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 71.882 |
| Hub Hole / Register [cntrc] In | 2.830 |
| Height [cntrc] Mm | 112.776 |
| Height [cntrc] In | 4.440 |
| Friction Surface Width [cntrc] Mm | 74.422 |
| Friction Surface Width [cntrc] In | 2.930 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 345.948 MM |
| Outside Diameter | 13.620 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 16.510 MM |
| Mounting Hole Diameter | 0.650 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
CENTRIC 122.63016 Cross References
