(888) 312-8812 Login SignupCENTRIC 122.62002 Premium Brake Drum
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.62002 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

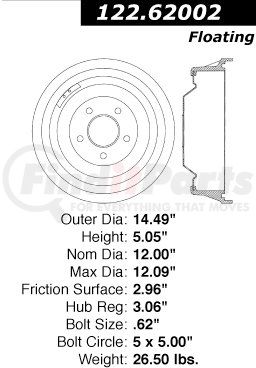

CENTRIC 122.62002 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 12.045 |
| Weight [cntrc] Lbs | 26.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 77.724 |
| Hub Hole / Register [cntrc] In | 3.060 |
| Height [cntrc] Mm | 128.270 |
| Height [cntrc] In | 5.050 |
| Friction Surface Width [cntrc] Mm | 75.184 |
| Friction Surface Width [cntrc] In | 2.960 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 307.100 MM |
| Maximum Brake Diameter (Discard) | 12.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 368.046 MM |
| Outside Diameter | 14.490 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.750 MM |
| Mounting Hole Diameter | 0.620 IN |
| Nominal Drum Diameter | 304.800 MM |
| Nominal Drum Diameter | 12.000 IN |
