CENTRIC 122.61006 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

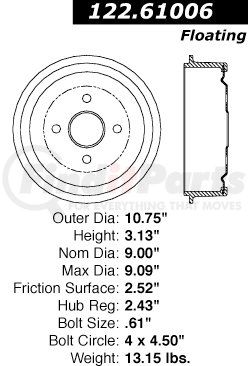

CENTRIC 122.61006 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.977 |
| Weight [cntrc] Lbs | 13.150 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 61.722 |
| Hub Hole / Register [cntrc] In | 2.430 |
| Height [cntrc] Mm | 79.502 |
| Height [cntrc] In | 3.130 |
| Friction Surface Width [cntrc] Mm | 64.008 |
| Friction Surface Width [cntrc] In | 2.520 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.900 MM |
| Maximum Brake Diameter (Discard) | 9.090 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 273.050 MM |
| Outside Diameter | 10.750 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.494 MM |
| Mounting Hole Diameter | 0.610 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
