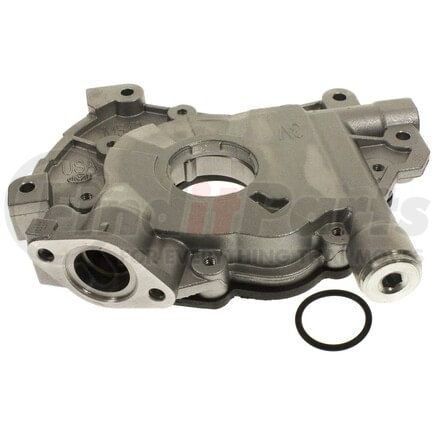

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M540 M540 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Tap to view 2 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M540 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M540 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 8.0 IN |
| Width | 203.0 MM |
| Height | 6.0 IN |
| Height | 152.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Aluminum |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Pickup Screen Diameter | 0.94 IN |
| Pickup Screen Diameter | 24.0 MM |
| Mounting Hole Diameter | 0.25 IN |
| Mounting Hole Diameter | 6.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 1.000 |
| Inlet Size (mm) | 25.40 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Not Applicable |
| Finish | Rust Preventative |
| Rotor Material | Powdered Metal |
| Pickup Tube Diameter | 1.000 IN |
| Pickup Tube Diameter | 25.40 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00729295104940 |
MELLING ENGINE PRODUCTS M540 Cross References
| Brand | Part Number |
|---|---|
| Ford | DR3Z-6600-A |
| MELLING ENGINE PRODUCTS | M540 |
| Melling | M540 |
MELLING ENGINE PRODUCTS M540 Fits Vehicles
- Ford Mustang (2013-2014)
