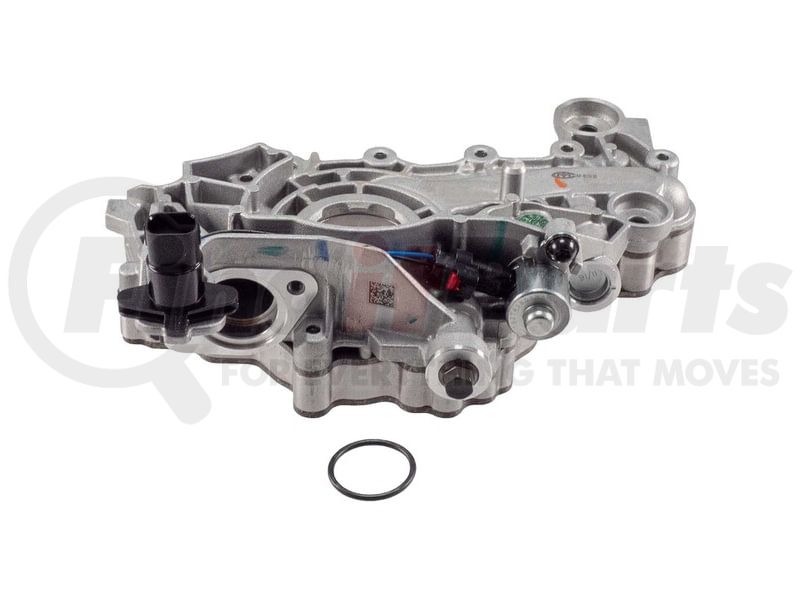

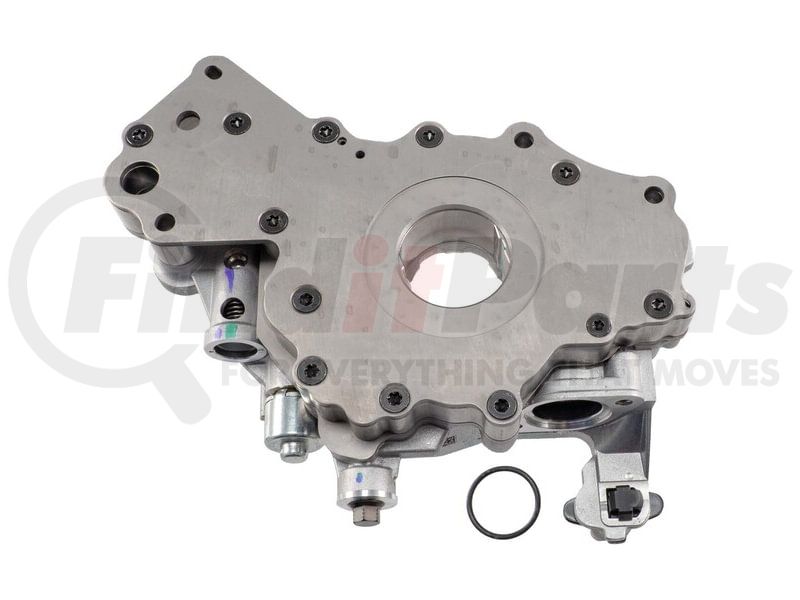

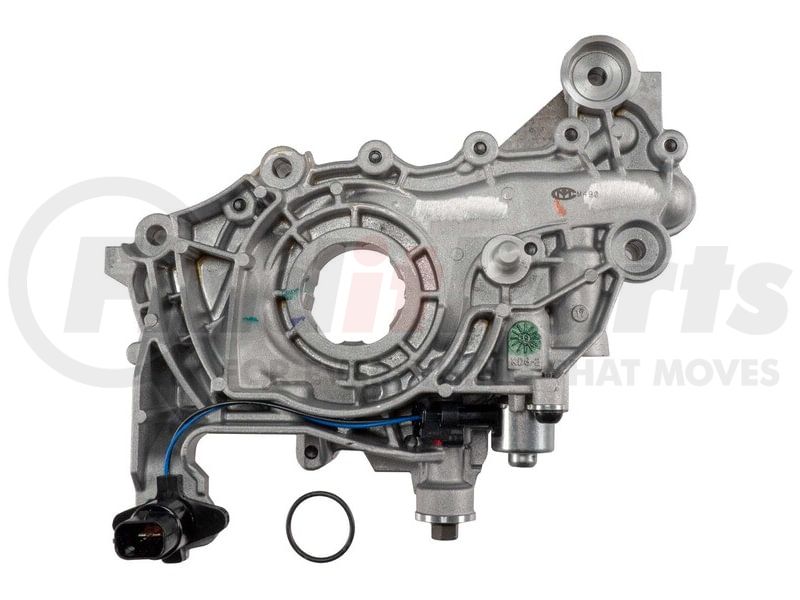

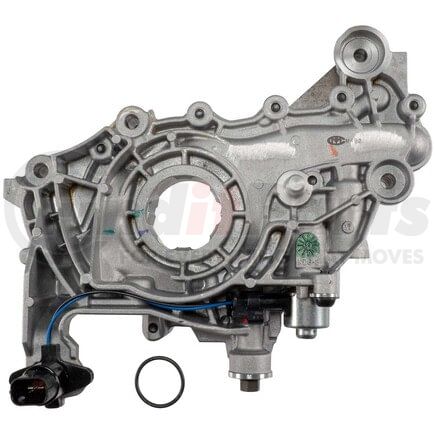

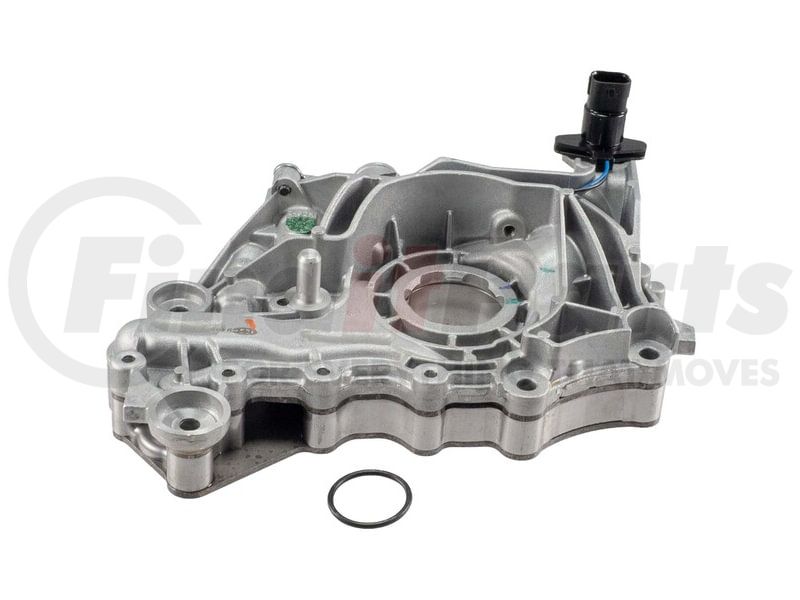

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M490 M490 Stock Replacement : Standard Volume, Standard Pressure, Die Cast Aluminum Oil Pump With Gasket
$43999
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
MELLING ENGINE PRODUCTS M490 Part Description
MELLING ENGINE PRODUCTS M490 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Gear Material | Stainless Steel |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Oil Pump Type | Cresent |
| Solenoid Included | Yes |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Mounting Hole Diameter | 9.52 MM |
| Mounting Hole Diameter | 0.250 IN |
| Width | 7.500 IN |
| Width | 200.00 MM |
| Height | 10.000 IN |
| Height | 254.00 MM |
| Pickup Screen Diameter | 1.000 IN |
| Pickup Screen Diameter | 25.50 MM |
| Rotor Material | Powdered Metal |
| Pickup Tube Diameter | 1.000 IN |
| Pickup Tube Diameter | 25.40 MM |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 1.000 |
| Inlet Size (mm) | 25.40 |
| Gears Included | Not Applicable |
| Cover Material | Aluminum |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Grade Type | Standard Replacement |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295105503 |
MELLING ENGINE PRODUCTS M490 Cross References
MELLING ENGINE PRODUCTS M490 Fits Vehicles
- Ford Police Interceptor Utility (2020-2024)
- Ford Transit-350 HD (2020-2024)
- Ford Transit-350 (2020-2024)
- Ford Transit-150 (2020-2024)
- Ford Transit-250 (2020-2024)
- Ford Explorer (2020-2023)
- Lincoln Navigator (2018-2024)
- Ford Expedition (2018-2024)
- Ford F-150 (2017-2024)
