(888) 312-8812 Login SignupCENTRIC 122.46005 Premium Brake Drum
Tap to view 1 more
$57.37
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.46005 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

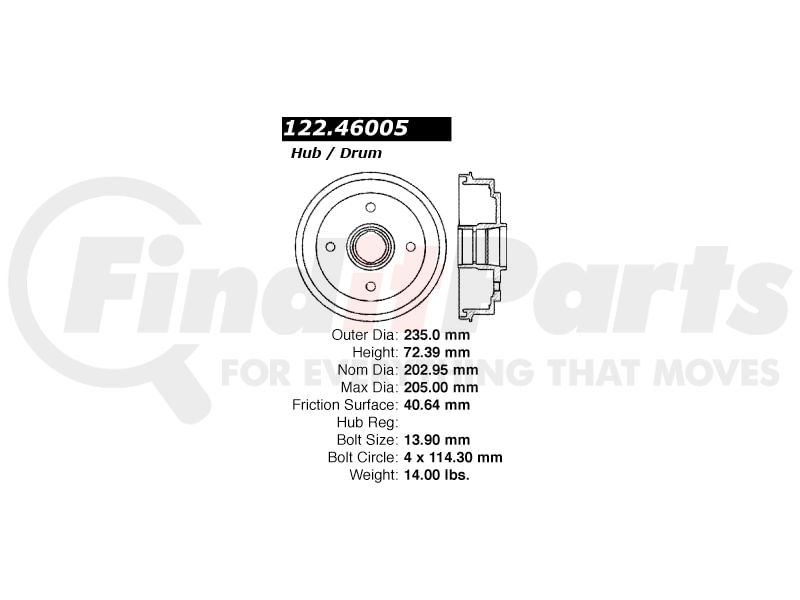

CENTRIC 122.46005 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.136 |
| Weight [cntrc] Lbs | 13.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 66.500 |
| Hub Hole / Register [cntrc] In | 2.618 |
| Height [cntrc] Mm | 72.390 |
| Height [cntrc] In | 2.850 |
| Friction Surface Width [cntrc] Mm | 40.640 |
| Friction Surface Width [cntrc] In | 1.600 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 205.000 MM |
| Maximum Brake Diameter (Discard) | 8.071 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 235.000 MM |
| Outside Diameter | 9.252 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.900 MM |
| Mounting Hole Diameter | 0.547 IN |
| Nominal Drum Diameter | 202.950 MM |
| Nominal Drum Diameter | 7.990 IN |
