(888) 312-8812 Login SignupCENTRIC 122.43001 Premium Brake Drum
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.43001 Part Description

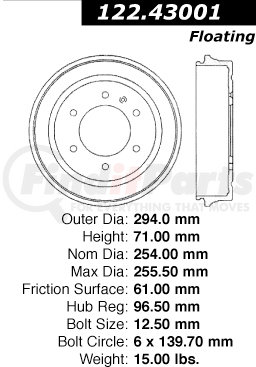

CENTRIC 122.43001 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 6.818 |
| Weight [cntrc] Lbs | 15.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 96.500 |
| Hub Hole / Register [cntrc] In | 3.799 |
| Height [cntrc] Mm | 71.000 |
| Height [cntrc] In | 2.795 |
| Friction Surface Width [cntrc] Mm | 61.000 |
| Friction Surface Width [cntrc] In | 2.402 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 255.500 MM |
| Maximum Brake Diameter (Discard) | 10.060 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 294.000 MM |
| Outside Diameter | 11.575 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
CENTRIC 122.43001 Cross References
We have 5 alternatives for the 122.43001 by CENTRIC:
