CENTRIC 122.04001 Part Description
Manufacturer
Product Description

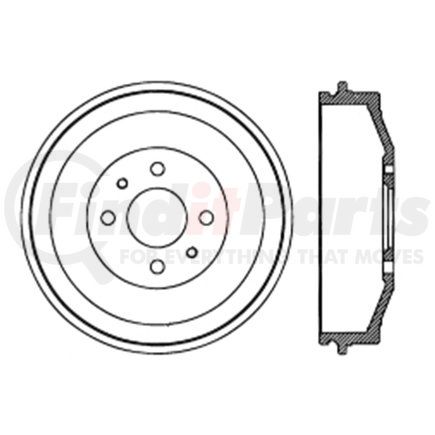

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.04001 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 6.818 |
| Weight [cntrc] Lbs | 15.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 98.000 |
| Bolt Circle Diameter [cntrc] In | 3.858 |
| Hub Hole / Register [cntrc] Mm | 59.500 |
| Hub Hole / Register [cntrc] In | 2.343 |
| Height [cntrc] Mm | 75.500 |
| Height [cntrc] In | 2.972 |
| Friction Surface Width [cntrc] Mm | 48.000 |
| Friction Surface Width [cntrc] In | 1.890 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 229.000 MM |
| Maximum Brake Diameter (Discard) | 9.016 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 271.500 MM |
| Outside Diameter | 10.689 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 228.400 MM |
| Nominal Drum Diameter | 8.992 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | IT |
| UPC | 805890031734 |
CENTRIC 122.04001 Cross References
CENTRIC 122.04001 Fits Vehicles
- Fiat Brava (1978-1981)
- Fiat 131 (1977-1978)
