(888) 312-8812 Login SignupCENTRIC 121.66052 C-Tek Standard Brake Rotor
Tap to view 4 more
$5699
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 16
CENTRIC 121.66052 Part Description
Manufacturer
Product Description

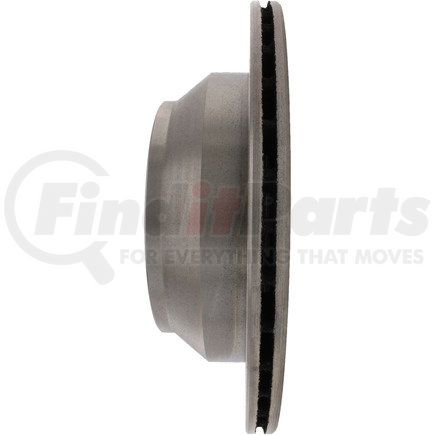

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.66052 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] In | 8.335 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.180 |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 18.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] Mm | 211.700 |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.500 MM |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Overall Height | 85.000 MM |
| Overall Height | 3.346 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 210.200 MM |
| Nominal Drum Diameter | 8.276 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.098 IN |
| Center Hole Diameter | 78.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.520 IN |
| Stud/Lug Hole Diameter | 13.200 MM |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890199137 |
CENTRIC 121.66052 Cross References
| Brand | Part Number |
|---|---|
| 10580029 | |
| MAGMA PRODUCTS | PMR225226 |
| N/A | BD126029, E126-71-057, 55073, BR55073, 145314, BD5080, BRM09910411, 55073G, PRT5314, 580029R, 10580029, 101758, 48880036, 19958, AR8647E, 60048045, E12671057, 55073HC |
| PRONTO | BR55073 |
| RAYBESTOS | 580029, 580029FZN, 580029PER, 580029R, 580029R2 |
| WAGNER | BD126029E, BD126029 |
CENTRIC 121.66052 Fits Vehicles
- Chevrolet Trailblazer EXT (2002-2006)
- GMC Envoy XL (2002-2006)
- GMC Envoy XUV (2004-2005)
- Oldsmobile Bravada (2002-2004)
- Chevrolet SSR (2003-2006)
- Isuzu Ascender (2003-2008)
- Saab 9-7x (2005-2009)
- GMC Envoy (2002-2009)
- Buick Rainier (2004-2007)
- Chevrolet Trailblazer (2002-2009)
