(888) 312-8812 Login SignupCENTRIC 121.66020 Standard Brake Rotor
Tap to view 1 more
$200.96
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 121.66020 Part Description
Manufacturer

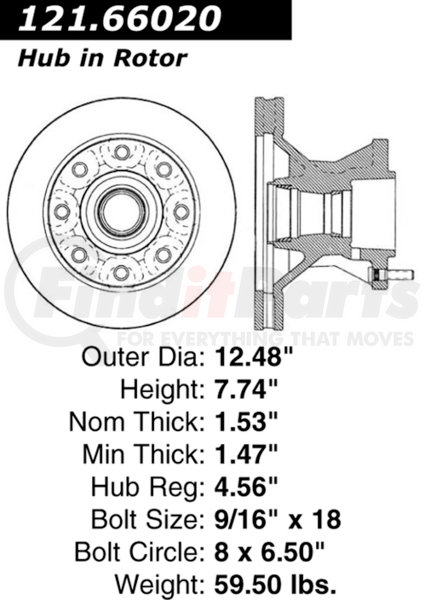

CENTRIC 121.66020 Specifications
Product Attributes
| Product Grade [cntrc] | Standard |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Seal # [cntrc] | 417.66013 |
| Inner Bearing # [cntrc] | 415.66001 |
| Outer Bearing # [cntrc] | 415.66000 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Race # [cntrc] | 416.66001 |
| Outer Race # [cntrc] | 416.66000 |
| Discard Thickness | 37.200 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 38.800 MM |
| Nominal Thickness | 1.528 IN |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 195.900 MM |
| Overall Height | 7.713 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.300 MM |
| Rotor Outside Diameter | 12.492 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 115.800 MM |
| Center Hole Diameter | 4.559 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
