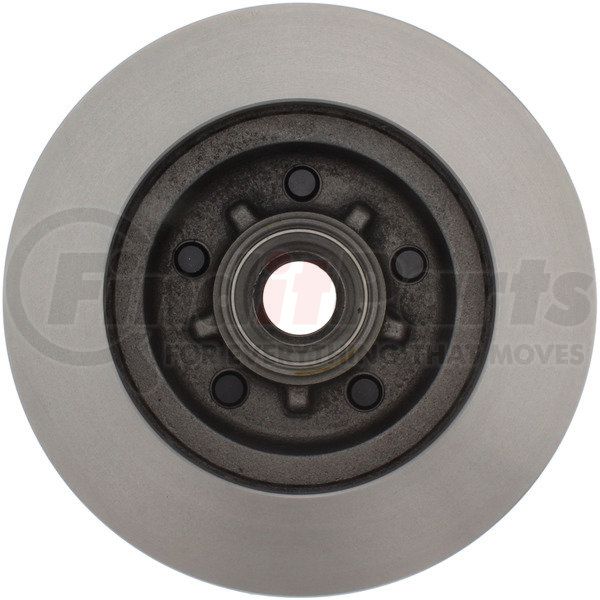

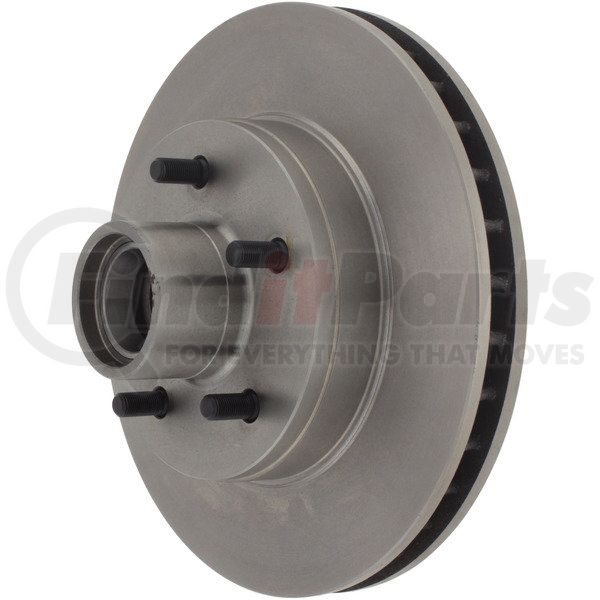

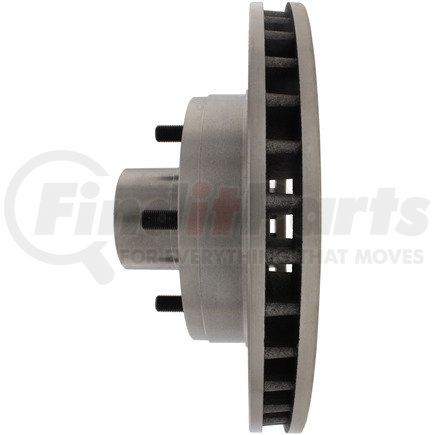

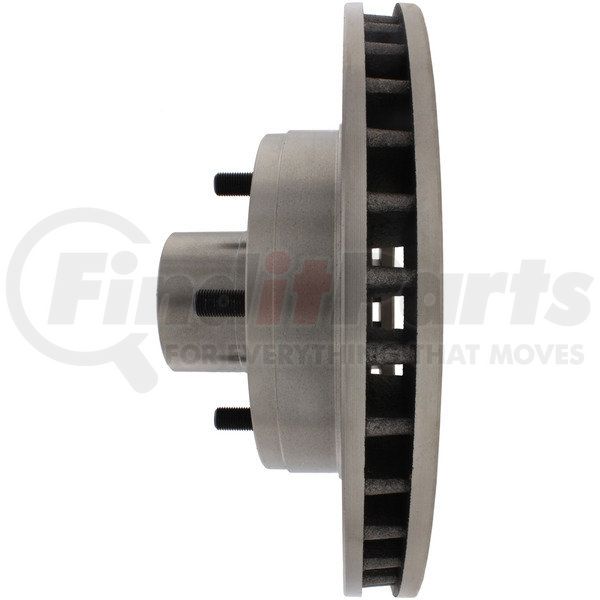

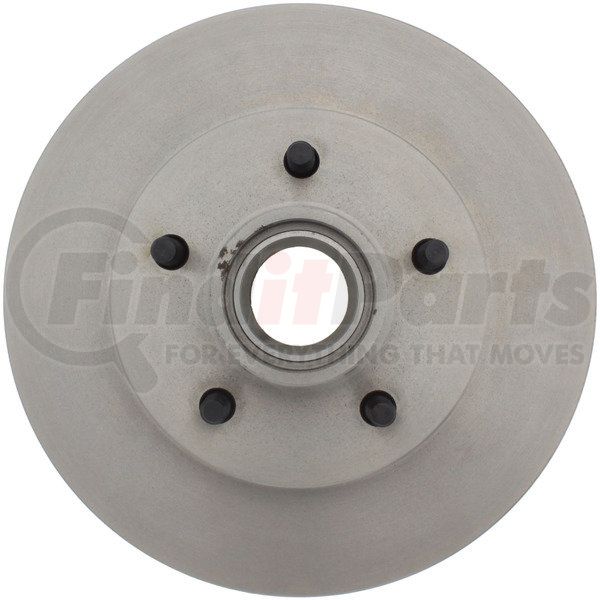

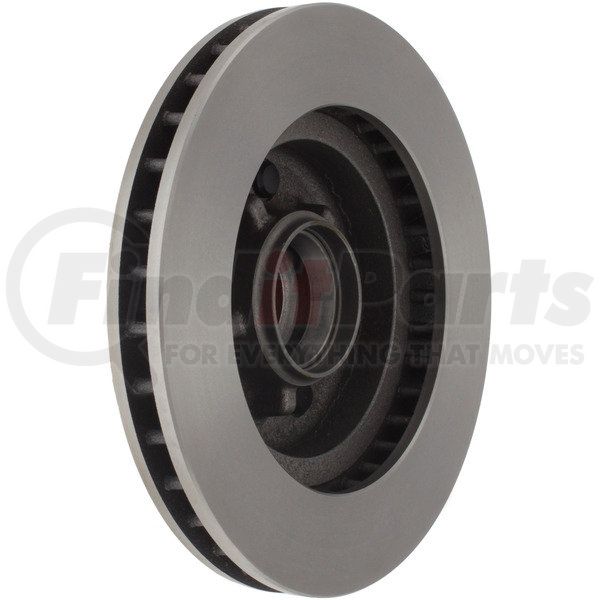

Centric 121.66007 - C-Tek Standard Brake Rotor
$11049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Vane Style [cntrc] | Straight |
| Outer Bearing # [cntrc] | 415.66006 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 29.400 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91035 |
| Weight [cntrc] Kgs | 13.360 |
| Outer Race # [cntrc] | 416.63003 |
| Product Grade [cntrc] | Standard |
| Inner Seal # [cntrc] | 417.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.640 MM |
| Nominal Thickness | 1.285 IN |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 125.300 MM |
| Overall Height | 4.933 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 301.200 MM |
| Rotor Outside Diameter | 11.858 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 77.300 MM |
| Center Hole Diameter | 3.043 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890075615 |
Part Interchanges
CENTRIC 121.66007 Cross Reference
We have 4 alternatives for the 121.66007 by CENTRIC:
Fits Vehicles
- Chevrolet G20 (1983-1992)
- GMC G2500 (1983-1992)
- Chevrolet Suburban (1987, 1990-1991)
