CENTRIC part description

Product Description

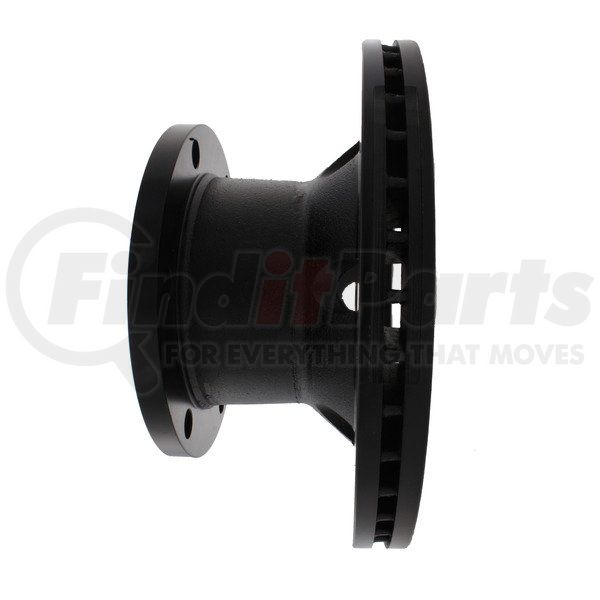

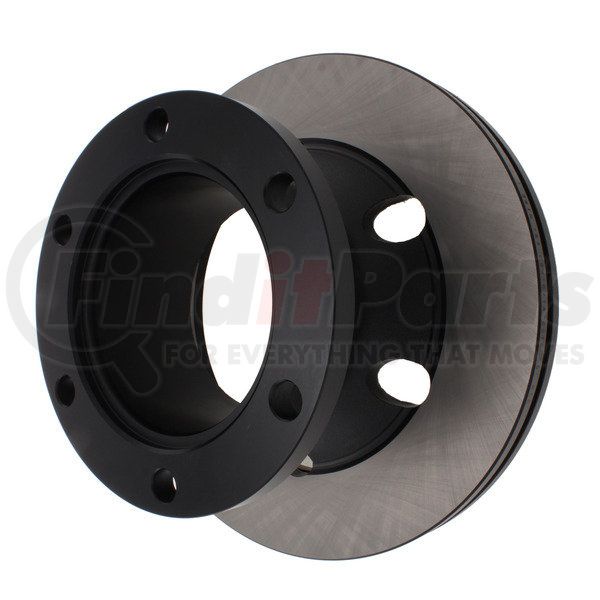

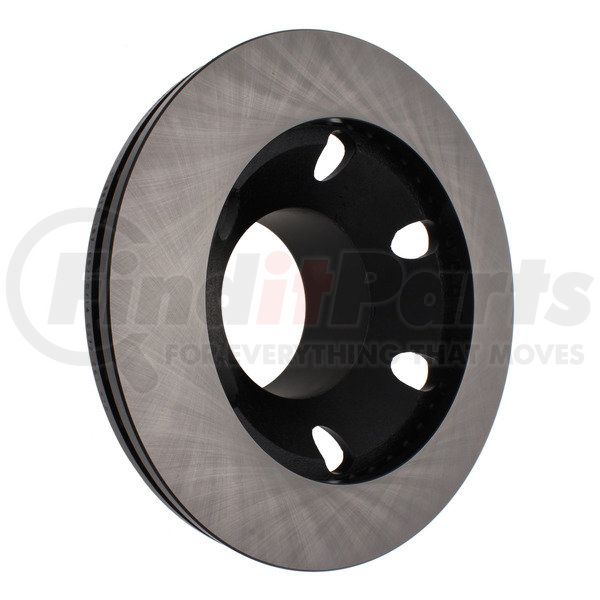

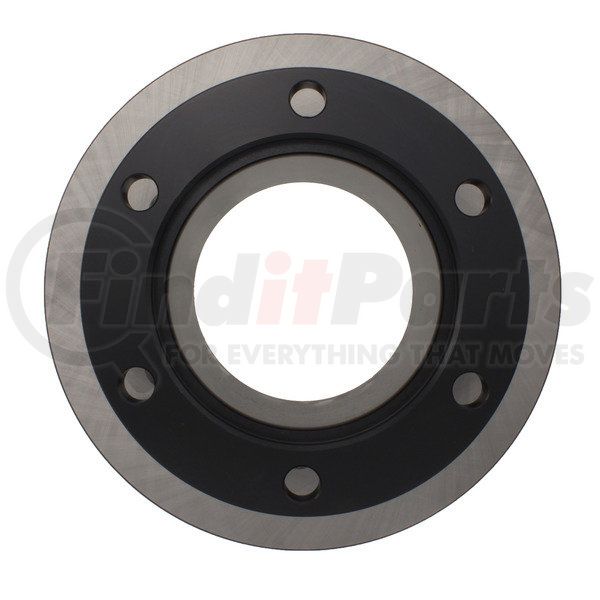

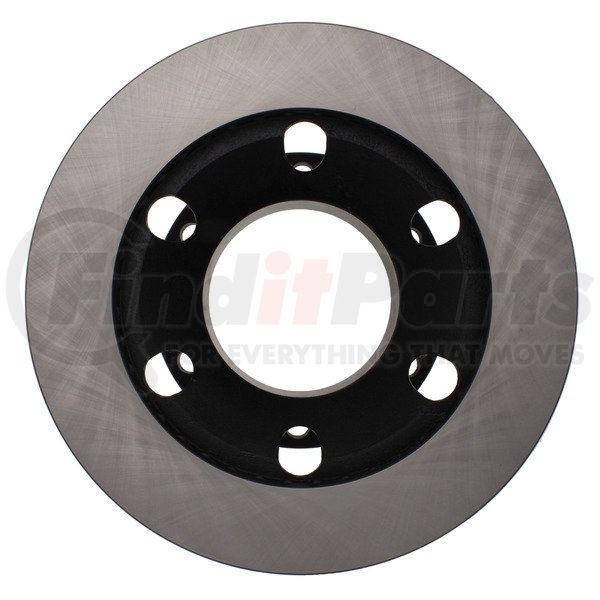

Premium Brake Rotor

Application Summary

1987 - 1992 International 1452SC, 1986 - 1998 International 1652SC, 1990 - 1997 International 1652UPS, 1983 - 1989 International 1654, 1973 - 1998 International 1724, 1973 - 1989 International 1754, 1973 - 1984 International 1824, 1973 - 1989 International 1854, 1973 - 1989 International 1924 S, 1983 - 1986 International 2276 S, 1983 - 1986 International 2375 S, 1983 - 1986 International Cargostar, 1979 - 1981 International F1924, 1979 - 1989 International F1954, 1973 - 1998 International S1624, 1984 - 1989 International S1654, 1988 - 1989 International S1654LP, 1973 - 1998 International S1723, 1980 - 1984 International S1724, 1973 - 1998 International S1753, 1981 - 1998 International S1754, 1973 - 1989 International S1823, 1980 - 1989 International S1824, 1973 - 1989 International S1853, 1973 - 1989 International S1853FC, 1981 - 1989 International S1854, 1980 - 1982 International S1924, 1980 - 1982 International S1925, 1973 - 1989 International S1954, 1979 - 1989 International S1955, 1980 - 1986 International S2100, 1980 - 1981 International S2125, 1984 - 1989 International S2155, 1984 - 1986 International S2300, 1984 - 1986 International S2375, 1980 - 1986 International S2500, 1980 - 1982 International S2524, 1981 - 1989 International S2554

Features & Benefits

  • Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake

Product Attributes

Discard Thickness 1.320 IN
Discard Thickness 33.53 MM
Nominal Thickness 1.435 IN
Nominal Thickness 36.45 MM
Outside Diameter 15.000 IN
Outside Diameter 381.00 MM
Mounting Bolt Hole Quantity 6
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 7.000 IN
Center Hole Diameter 177.80 MM
Mounting Bolt Hole Circle Diameter 8.752 IN
Mounting Bolt Hole Circle Diameter 222.30 MM
Mounting Bolt Hole Diameter 0.800 IN
Mounting Bolt Hole Diameter 20.32 MM
Disc Mounting [cntrc] Behind the Hub
Height 6.799
Hub Hole/Whl Reg [cntrc] 177.8 MM
Misc Holes [cntrc] 6
Notes [cntrc] U Shaped
Vane Style [cntrc] Straight
Weight [cntrc] 23.640 KG
Weight [cntrc] 52.000 LB

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890036784

Part Interchanges

Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.

Fits Vehicles

  • International S2554 (1981-1989)
  • International S2375 (1984, 1986)
  • International S2524 (1980-1982)
  • International S2155 (1984-1989)
  • International S2125 (1980-1981)
  • International Cargostar (1983-1986)
  • International 1654 (1983-1989)
  • International S1955 (1981-1989)
  • International S1954 (1981-1989)
  • International S1925 (1980-1982)
  • International S1924 (1980-1982)
  • International F1954 (1979-1982, 1986-1989)
  • International F1924 (1979-1981)
  • International 1955 (1979-1982)
  • International 1954 (1979-1989)
  • International 1925 S (1979-1982)
  • International 1924 S (1979-1982)
  • International 1854 (1979-1989)
  • International 1824 (1979-1984)
  • International 1754 (1979-1989)
  • International 1724 (1979-1985)
  • International S1854 (1981-1989)
  • International S1853FC (1987-1989)
  • International S1853 (1981-1989)
  • International S1824 (1980-1985)
  • International S1823 (1980-1982)
  • International 1652UPS (1990-1991, 1993, 1995-1997)
  • International 2375 S (1983-1986)
  • International 2276 S (1983-1986)
  • International S1754 (1981-1989)
  • International S1753 (1984-1989)
  • International 1652SC (1986-1998)
  • International S1724 (1980-1984)
  • International S1723 (1980-1985)
  • International S1654LP (1988-1989)
  • International S1654 (1984-1989)
  • International 1452SC (1987-1992)
  • International S1624 (1980-1982)
