CENTRIC 120.68001 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

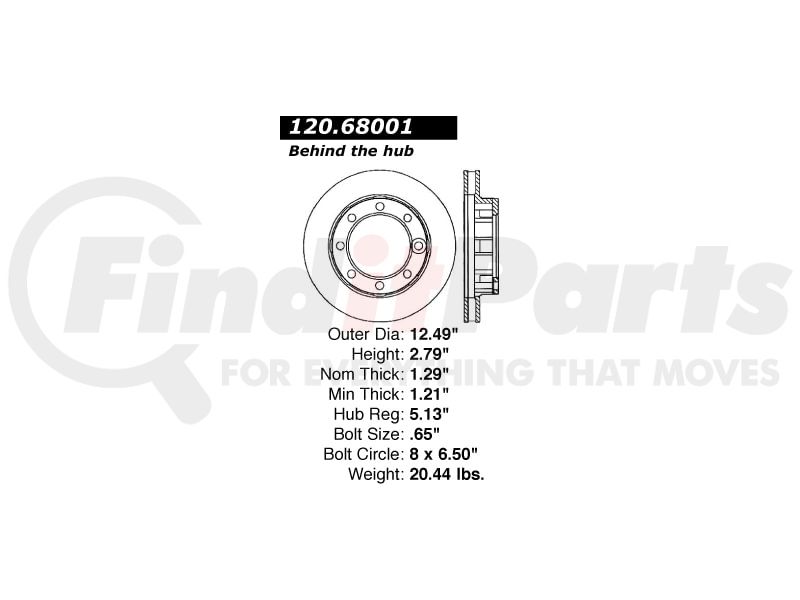

CENTRIC 120.68001 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 20.440 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.290 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Notes [cntrc] | Vented Hat |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 1.285 IN |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.600 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Center Hole Diameter | 5.126 IN |
| Center Hole Diameter | 130.200 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Mounting Bolt Hole Quantity | 8 |
| Outside Diameter | 12.488 IN |
| Outside Diameter | 317.200 MM |
| Overall Height | 71.000 MM |
| Overall Height | 2.795 IN |
| Nominal Thickness | 32.640 MM |
| Hat Finish | Painted |
CENTRIC 120.68001 Cross References
CENTRIC 120.68001 Fits Vehicles
- GMC P35/P3500 Van (1971-1973)
- GMC K25/K2500 Suburban (1971-1974)
- GMC K25/K2500 Pickup (1971-1974)
- GMC C35/C3500 Pickup (1971-1973)
- Chevrolet P30 Van (1971-1973)
- Chevrolet K20 Pickup (1971-1974)
- Chevrolet C30 Pickup (1971-1972)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC K2500 Suburban (1979-1986)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986)
- GMC K25 (1975-1978)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet K20 Suburban (1971-1986)
- Chevrolet K20 (1975-1986)
- Jeep J20 (1974-1988)
