CENTRIC 120.66054 Part Description
Manufacturer
Product Description

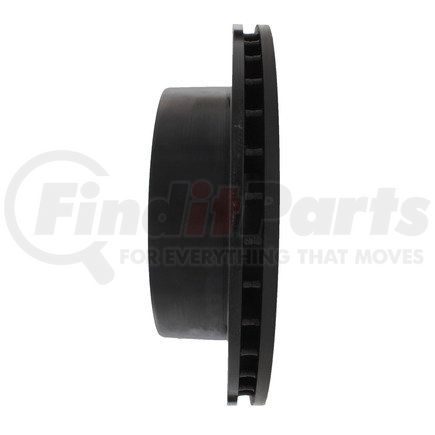

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66054 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.360 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 25.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 26.500 MM |
| Discard Thickness | 1.043 IN |
| Nominal Thickness | 29.000 MM |
| Nominal Thickness | 1.142 IN |
| Hat Finish | Painted |
| Overall Height | 87.000 MM |
| Overall Height | 3.425 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 205.000 MM |
| Nominal Drum Diameter | 8.071 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.091 IN |
| Center Hole Diameter | 78.500 MM |
| Mounting Bolt Hole Circle Diameter | 140.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.512 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 16.300 MM |
| Stud/Lug Hole Diameter | 0.642 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890371267 |
CENTRIC 120.66054 Cross References
CENTRIC 120.66054 Fits Vehicles
- GMC Savana 2500 (2003-2006)
- Chevrolet Express 2500 (2003-2006)
