CENTRIC 120.66046 Part Description
Manufacturer
Product Description

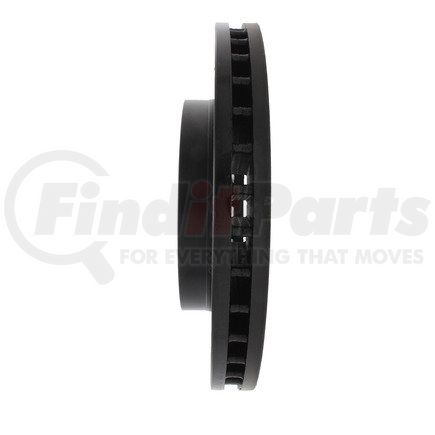

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66046 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.270 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 16.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.400 MM |
| Nominal Thickness | 30.090 MM |
| Nominal Thickness | 1.185 IN |
| Hat Finish | Painted |
| Overall Height | 51.800 MM |
| Overall Height | 2.039 IN |
| Outside Diameter | 275.100 MM |
| Outside Diameter | 10.831 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 71.100 MM |
| Center Hole Diameter | 2.799 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.559 IN |
| Stud/Lug Hole Diameter | 14.200 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890016885 |
CENTRIC 120.66046 Cross References
| Brand | Part Number |
|---|---|
| 56998, BD125776 | |
| N/A | BD125776, BD125776E, E125-71-051, 6493175, 55070, 55070G, 10434245, 13541400, 145315, 86998, 4886998, AR8268, E12571051, 120.66046, A5754, 5754, 1407-25874, YH145315, 27232, 2055070, 19989, 177897, 18A1192A, 90045021 |
| NEOTEK | 107275GF |
| Neotek Premium Drums and Rotors | 107275GF |
| PRONTO | BR5507002 |
| RAYBESTOS | 56998, 56998FZN, 56998R |
| Raybestos Brakes | 56998, 56998FZN, 56998R |
| WAGNER | BD125776E, BD125776 |
CENTRIC 120.66046 Fits Vehicles
- Pontiac Aztek (2001-2005)
- Buick Rendezvous (2002-2007)
