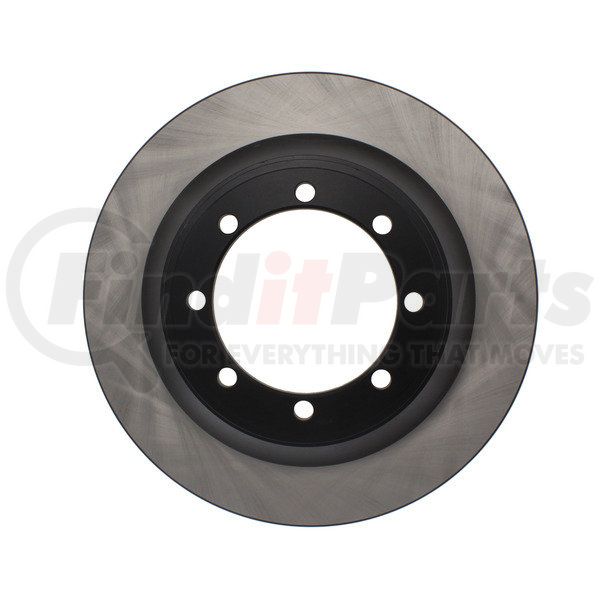

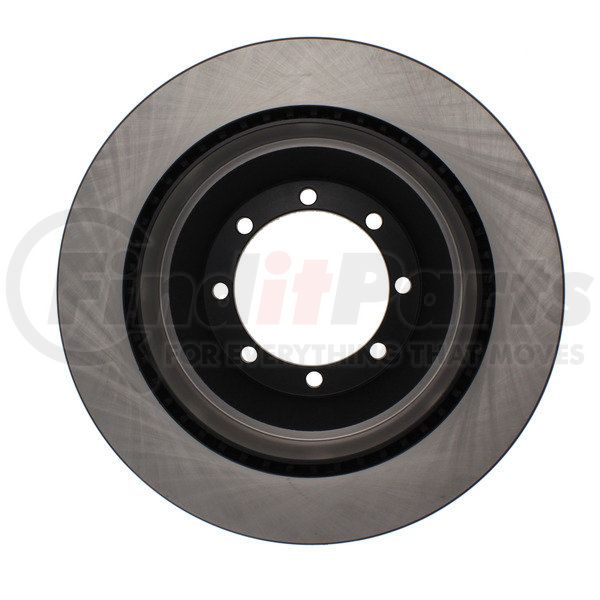

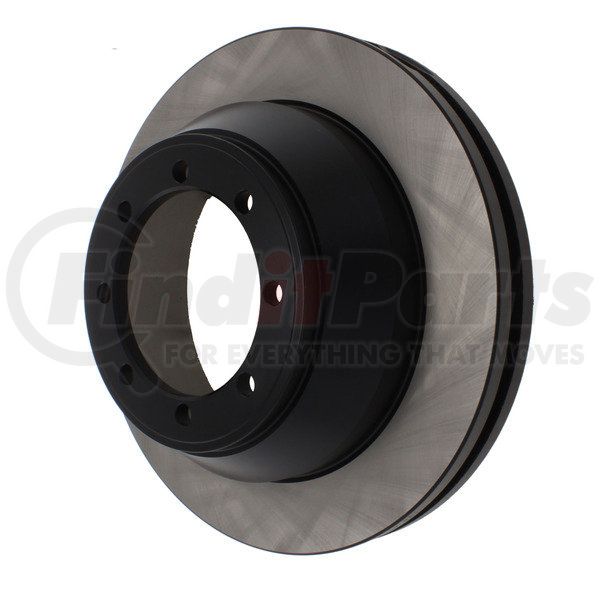

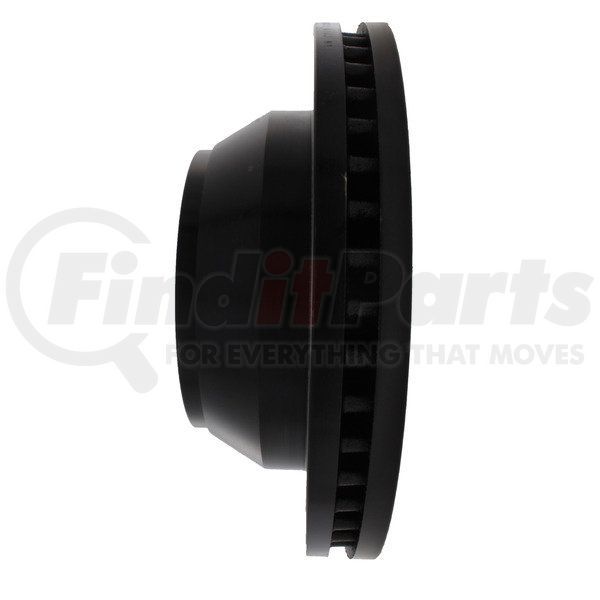

CENTRIC 120.65127 - Disc Brake Rotor - 13.58" Outside Diameter, with Full Coating and High Carbon Content
$14349
MSRP: $175.93
Save: $32.44
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Centric Premium Brake Rotor
Application Summary
Ford E-450 Super Duty 2019-2008, E-450 Super Duty 2023-2021
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
Product Attributes
| Discard Thickness | 1.591 IN |
| Nominal Thickness | 42.000 MM |
| Hat Finish | Coated |
| Overall Height | 116.700 MM |
| Outside Diameter | 345.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 226.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 123.300 MM |
| Mounting Bolt Hole Circle Diameter | 5.709 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 13.000 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 8.984 |
| Max Pb Drum Dia [cntrc] Mm | 228.200 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 17.500 |
| Weight [cntrc] Lbs | 38.500 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890433392 |
Part Interchanges
CENTRIC 120.65127 Cross Reference
We have 8 alternatives for the 120.65127 by CENTRIC:
Fits Vehicles
- Ford E-450 Super Duty (2008-2019, 2021-2022)
