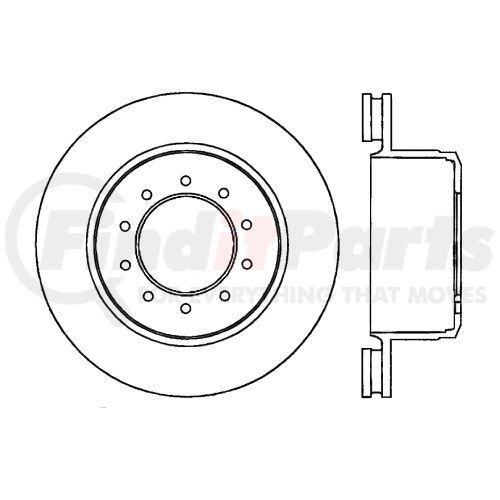

CENTRIC 120.65115 Part Description
Manufacturer
Product Description
Premium Brake Rotor
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

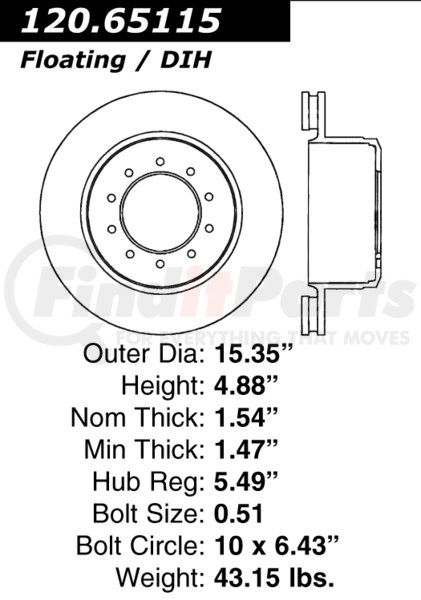

CENTRIC 120.65115 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 43.150 |
| Weight [cntrc] Kgs | 19.610 |
| Max Pb Drum Dia [cntrc] In | 9.575 |
| Max Pb Drum Dia [cntrc] Mm | 243.200 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Behind the Hub |
| Mounting Bolt Hole Diameter | 0.506 IN |
| Mounting Bolt Hole Diameter | 12.860 MM |
| Mounting Bolt Hole Circle Diameter | 163.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.421 IN |
| Center Hole Diameter | 139.400 MM |
| Center Hole Diameter | 5.488 IN |
| Bearings Included | No |
| Nominal Drum Diameter | 9.488 IN |
| Nominal Drum Diameter | 241.000 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Mounting Bolt Hole Quantity | 10 |
| Outside Diameter | 15.354 IN |
| Outside Diameter | 390.000 MM |
| Overall Height | 124.000 MM |
| Overall Height | 4.882 IN |
| Hat Finish | Painted |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39.000 MM |
| Discard Thickness | 37.400 MM |
| Discard Thickness | 1.472 IN |
CENTRIC 120.65115 Cross References
| Brand | Part Number |
|---|---|
| 680374, BD126443, 120.67078 | |
| NEOTEK | 1071096GF |
| PRONTO | BR90035902 |
| WAGNER | BD126443E, BD126443 |
CENTRIC 120.65115 Fits Vehicles
- Ram 5500 (2011-2023)
- Ram 4500 (2011-2023)
