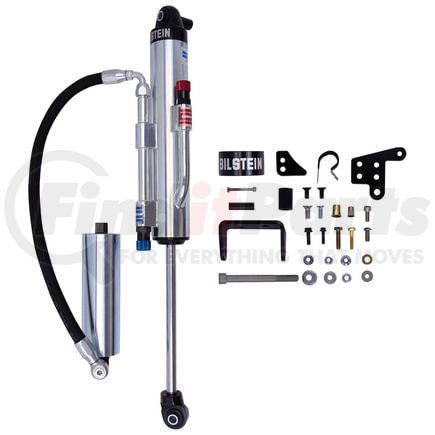

Bilstein 25-305234 - 60mm Shock Absorber
$1,50549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
BILSTEIN part description
60mm Shock Absorber
Product Description
B8 8100 (Bypass) - Shock Absorber
Application Summary
Jeep Gladiator 2022-2020
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Product Attributes
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (id) | 60mm |
| Boot Included | No |
| Collapsed Length (in) | 17.17 |
| Collapsed Length (mm) | 436.2 |
| Extended Length (in) | 27.24 |
| Extended Length (mm) | 692.0 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.8mm |
| RESERVOIR | Yes |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye 12.8mm |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Segment | Light Truck |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Refurbished Part | N |
| Remanufactured Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| UPC | 00651860872742 |
Fits Vehicles
- Jeep Gladiator (2020-2024)
