(888) 312-8812 Login SignupCENTRIC 120.47030 Premium Brake Rotor
Tap to view 1 more
$132.99
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.47030 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

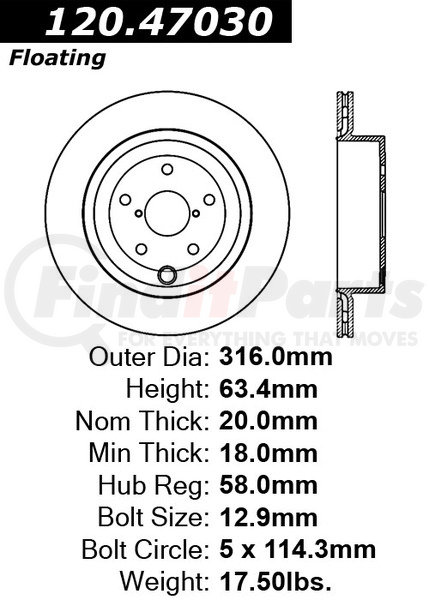

CENTRIC 120.47030 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Pillar |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Hat Id [cntrc] Mm | 189.800 |
| Hat Id [cntrc] In | 7.472 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 7.950 |
| Weight [cntrc] Lbs | 17.500 |
| Product Grade [cntrc] | Premium |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Diameter | 0.504 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Bearings Included | No |
| Nominal Drum Diameter | 7.480 IN |
| Nominal Drum Diameter | 190.000 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.445 IN |
| Outside Diameter | 316.100 MM |
| Overall Height | 2.500 IN |
| Overall Height | 63.500 MM |
| Hat Finish | Painted |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Discard Thickness | 18.000 MM |
| Discard Thickness | 0.709 IN |
CENTRIC 120.47030 Cross References
CENTRIC 120.47030 Fits Vehicles
- Subaru WRX (2016)
- Subaru WRX STI (2013-2017)
- Subaru Impreza (2008-2014)
