(888) 312-8812 Login SignupCENTRIC 120.47014 Premium Brake Rotor
Tap to view 1 more
$83.53
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.47014 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

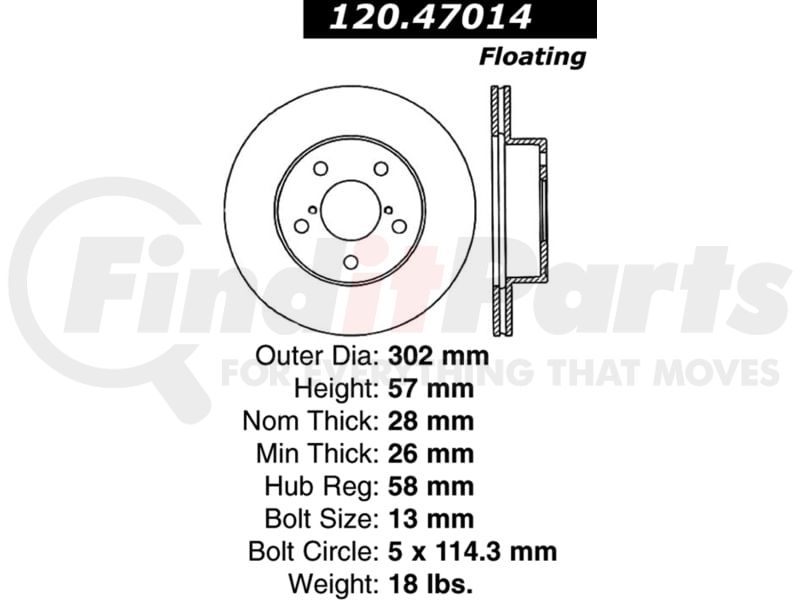

CENTRIC 120.47014 Specifications
Product Attributes
| Weight [cntrc] Kgs | 8.180 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 18.000 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 11.890 IN |
| Outside Diameter | 302.000 MM |
| Overall Height | 57.000 MM |
| Overall Height | 2.244 IN |
| Hat Finish | Painted |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
CENTRIC 120.47014 Cross References
CENTRIC 120.47014 Fits Vehicles
- Subaru SVX (1992-1997)
