CENTRIC 120.45071 Part Description
Manufacturer
Product Description

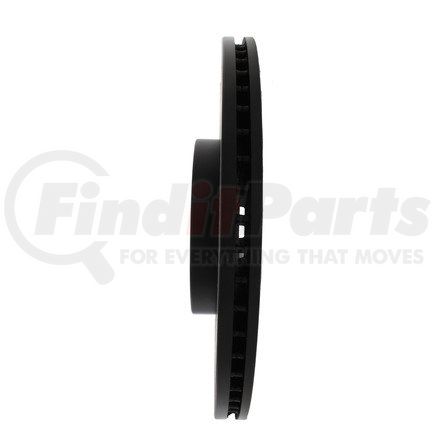

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.45071 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.180 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 18.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 22.000 MM |
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 24.000 MM |
| Nominal Thickness | 0.945 IN |
| Hat Finish | Painted |
| Overall Height | 1.768 IN |
| Overall Height | 44.900 MM |
| Outside Diameter | 323.000 MM |
| Outside Diameter | 12.717 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.827 IN |
| Center Hole Diameter | 71.800 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890324003 |
CENTRIC 120.45071 Cross References
| Brand | Part Number |
|---|---|
| 980293, BD126384 | |
| N/A | 0833234, BD126384, 50002GT, YH200373, 44644, 25878, 31371G, F15733251, F16033251, F16033251A, 50002, 980293P, 31371, 880293, DF4970S, 90080043 |
| NEOTEK | 106631GF |
| Neotek Premium Drums and Rotors | 106631GF |
| RAYBESTOS | 980293, 980293FZN, 980293R |
| Raybestos Brakes | 980293FZN, 980293R, 980293 |
| WAGNER | BD126384 |
CENTRIC 120.45071 Fits Vehicles
- Mazda RX-8 (2004-2011)
