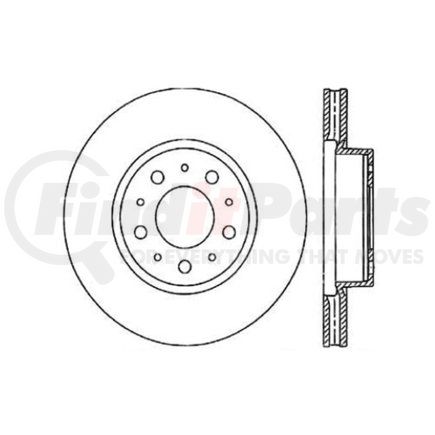

(888) 312-8812 Login SignupCENTRIC 120.39016 Centric Premium Brake Rotor
Tap to view 1 more
$77.66
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.39016 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

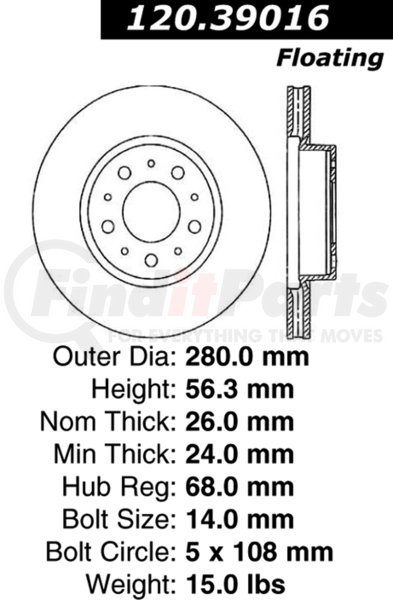

CENTRIC 120.39016 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 15.000 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 6.820 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 5 |
| Discard Thickness | 24.000 MM |
| Discard Thickness | 0.945 IN |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Hat Finish | Painted |
| Overall Height | 56.300 MM |
| Overall Height | 2.217 IN |
| Outside Diameter | 280.000 MM |
| Outside Diameter | 11.024 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890031147 |
CENTRIC 120.39016 Cross References
| Brand | Part Number |
|---|---|
| 96244, BD125319 | |
| N/A | BD125319, 0832485, 64 21 150, 6421150, 34018, 34018G, 106455, 3516567, 35165679, 31262209, 6848902, 68489020, 45210SD2A002, 42510SB2A00, 141651, 86244, 4886244, 1108, EBR416, D17692, 1602224, 1.6022.2.4, 120.39016, VV251V, YH141651, 25321, X50968, BR1782, 96244, DDF255, 142661, 60027015, 610.1192.00 |
| RAYBESTOS | 96244R |
| Raybestos Brakes | 96244R |
| WAGNER | BD125319 |
CENTRIC 120.39016 Fits Vehicles
- Volvo 960 (1992-1994)
- Volvo 940 (1991-1995)
- Volvo 780 (1991)
- Volvo 740 (1991-1992)
