(888) 312-8812 Login SignupCENTRIC 120.20009 Centric Premium Brake Rotor
Tap to view 4 more
$68.62
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.20009 Part Description
Manufacturer
Product Description

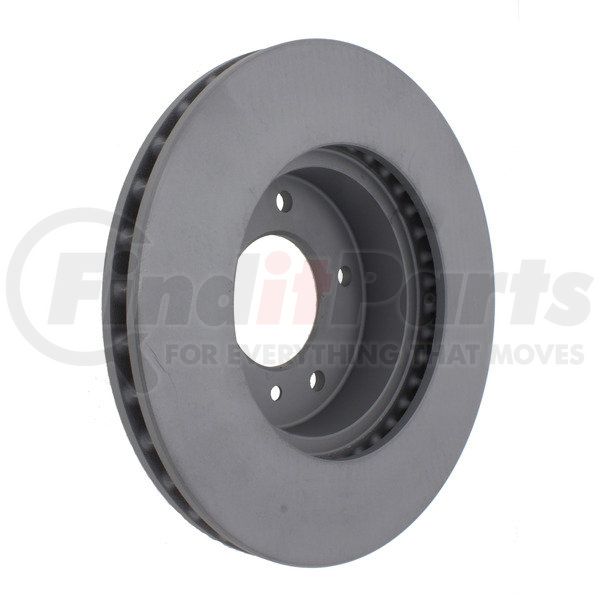

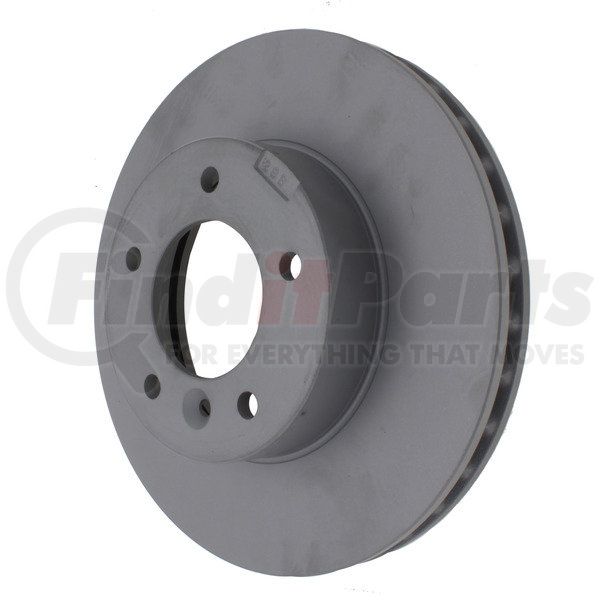

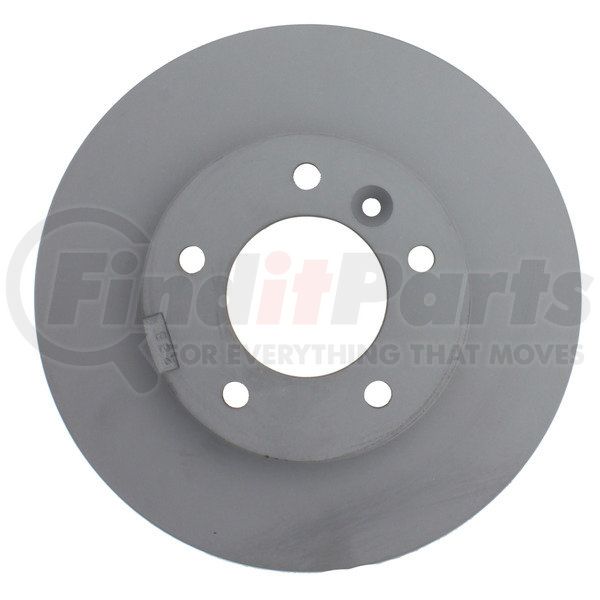

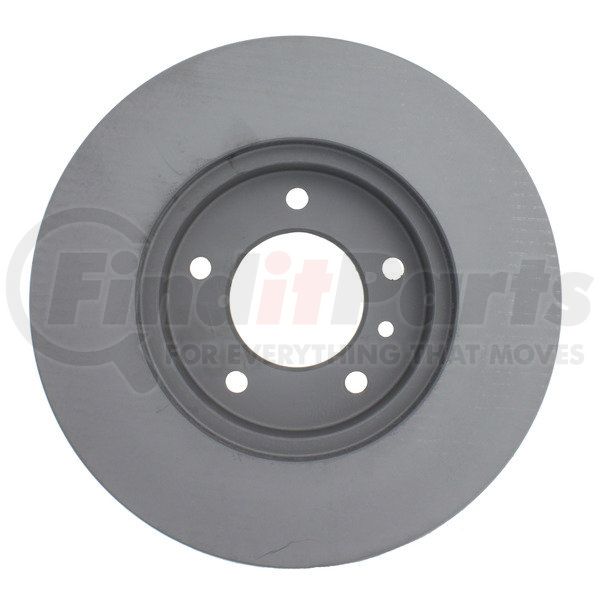

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.20009 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 16.490 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 7.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 28.300 MM |
| Nominal Thickness | 1.114 IN |
| Hat Finish | Painted |
| Overall Height | 66.800 MM |
| Overall Height | 2.630 IN |
| Outside Diameter | 290.800 MM |
| Outside Diameter | 11.449 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 80.000 MM |
| Center Hole Diameter | 3.150 IN |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.524 IN |
| Stud/Lug Hole Diameter | 13.300 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890029137 |
CENTRIC 120.20009 Cross References
| Brand | Part Number |
|---|---|
| 96586, 980006, BD125073 | |
| N/A | BD125073, 0832519, 6433060, 64 33 060, 34053, 34183, 34183G, 34053G, 106755, BLM1826, JLM12304, JLM1826, JLM20341, 141843, 145171, 4886586, 48880006, 86586, EBR437, 1230624, 1.2306.2.4, JA011V, YH141843, 25923, 25375, X50833, BR1862, 980006, DDF440, DF1804, 8970010, 60020006, 290.2257.00 |
| RAYBESTOS | 96586, 96586R |
| Raybestos Brakes | 96586R, 96586 |
| WAGNER | BD125073 |
CENTRIC 120.20009 Fits Vehicles
- Jaguar XJ6 (1990-1997)
- Jaguar XJ12 (1995-1996)
- Jaguar Vanden Plas (1990-1997)
