(888) 312-8812 Login SignupCENTRIC 120.02006 Premium Brake Rotor
Tap to view 1 more
$132.33
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.02006 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

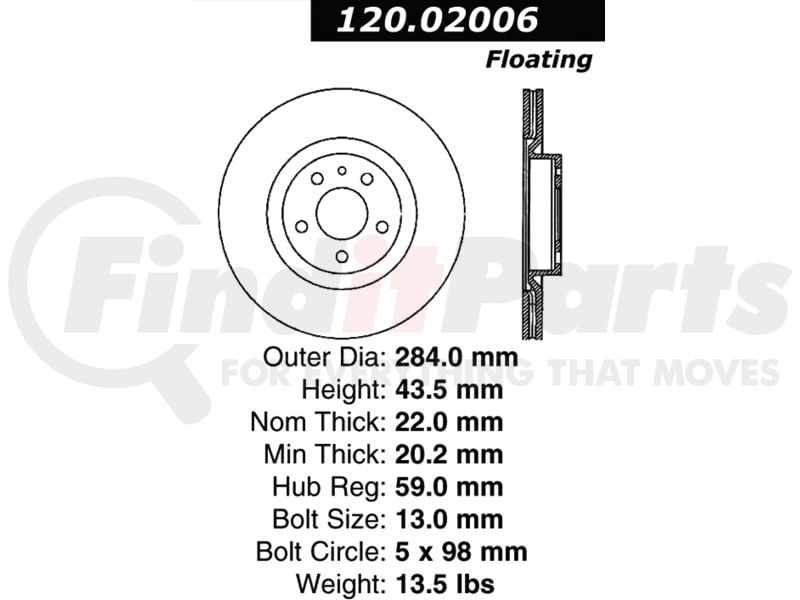

CENTRIC 120.02006 Specifications
Product Attributes
| Weight [cntrc] Lbs | 13.750 |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 6.240 |
| Hat Id [cntrc] Mm | 126.700 |
| Hat Id [cntrc] In | 4.988 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Hat Finish | Painted |
| Overall Height | 1.713 IN |
| Overall Height | 43.500 MM |
| Outside Diameter | 284.000 MM |
| Outside Diameter | 11.181 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 59.000 MM |
| Center Hole Diameter | 2.323 IN |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Diameter | 13.000 MM |
CENTRIC 120.02006 Cross References
| Brand | Part Number |
|---|---|
| N/A | DDF1298, 51937218, 51937217 |
| RAYBESTOS | 96740R |
CENTRIC 120.02006 Fits Vehicles
- Alfa Romeo 164 (1991-1995)
