Maval 94315M - Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94315M
$53149
+$133.33 Core Deposit
Total price w/ core: $664.82
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
94315m
Product Description

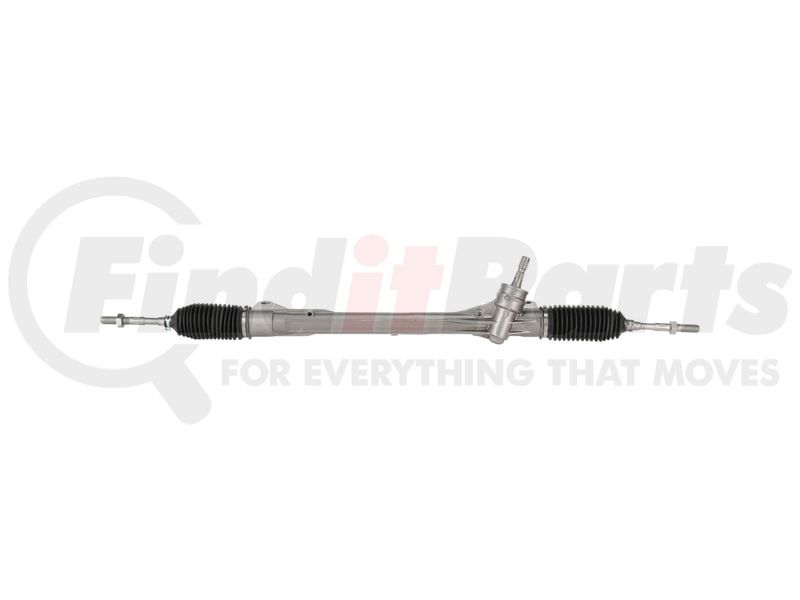

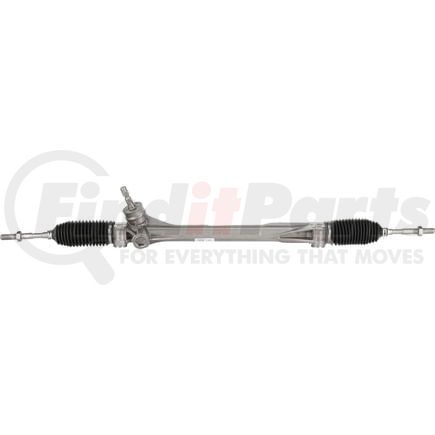

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94315M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 19.75 IN |
| Distance Between Mounting Holes | 501.65 MM |
| Input Shaft Diameter | 0.748 IN |
| Input Shaft Diameter | 19 MM |
| Input Shaft Length | 5.188 IN |
| Input Shaft Length | 131.76 MM |
| Mounting Hole Quantity | 2 |
| Rack Length | 43.688 IN |
| Rack Length | 1109.66 MM |
| Thread Length | 2.043 IN |
| Thread Length | 51.89 MM |
| Tie Rod Ends Included | Yes |
| Total Turns Lock To Lock | 2.813 |
| Type | Manual |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613109827 |
Fits Vehicles
- Toyota RAV4 (2006-2012)
California residents see Prop 65 Warning(s)
