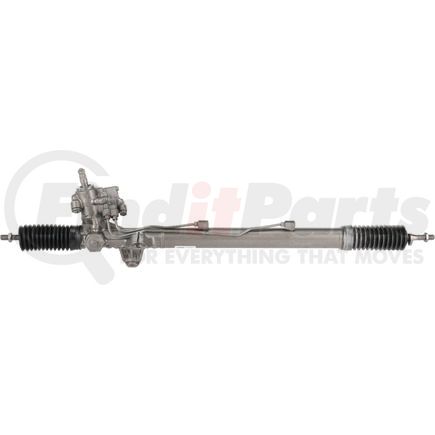

Maval 9291M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9291M
$48049
+$266.67 Core Deposit
Total price w/ core: $747.16
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
9291m
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9291M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
- To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance.
Product Attributes
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes | 4.63 IN |
| Distance Between Mounting Holes | 117.48 MM |
| Hose Port Type | Banjo/Washer |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter | 17.42 MM |
| Input Shaft Diameter | 0.69 IN |
| Input Shaft Length | 1.63 IN |
| Input Shaft Length | 41.28 MM |
| Number of Mounting Holes | 2 |
| Rack Length | 1033.48 MM |
| Rack Length | 40.69 IN |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 1.79 IN |
| Thread Length | 45.34 MM |
| Total Turns Lock To Lock | 3.38 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613102460 |
Fits Vehicles
- Acura TL (1996-1998)
- Acura RL (1996-2004)
