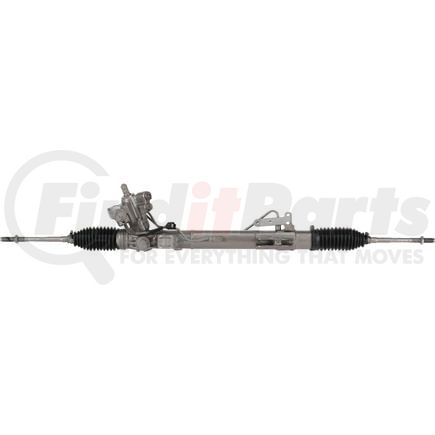

Maval 93323M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93323M
$49749
+$200.00 Core Deposit
Total price w/ core: $697.49
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
93323m
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93323M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Distance Between Mounting Holes | 292.1 MM |
| Distance Between Mounting Holes | 11.5 IN |
| Inner Tie Rod Length | 10.1 IN |
| Inner Tie Rod Length | 258.5 MM |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter | 0.68 IN |
| Input Shaft Diameter | 17.3 MM |
| Input Shaft Length | 29 MM |
| Input Shaft Length | 1.1 IN |
| Mounting Hole Quantity | 3 |
| New Or Remanufactured | Remanufactured |
| Pressure Port Thread Size | M14x1.50 |
| Rack Length | 45 IN |
| Rack Length | 1143.5 MM |
| Return Port Thread Size | M16x1.50 |
| Steering Input Shaft Spline Quantity | 36 |
| Total Turns Lock To Lock | 3.06 |
| Type | Hydraulic |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613108592 |
Fits Vehicles
- Nissan Murano (2009-2014)
