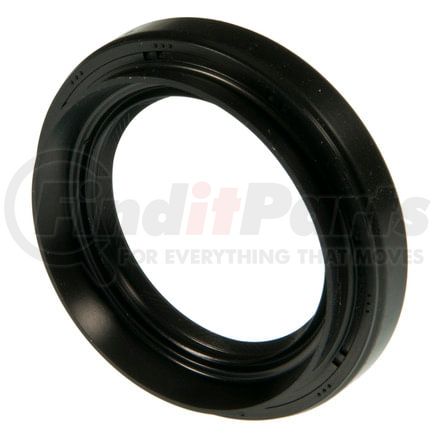

Name: National Seals 710596 National 710596 Drive Axle Shaft Seal
SKU: 710596
Price: 8.49 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Drive Axle Shaft Seal

Application Summary

2003-2007 Lexus LX470 (Front Right) (Qualifier: with 8 (in) Ring Gear, with Toyota Axle, Independent Front Suspension); 2003-2009 Lexus GX470 (Front Left) (Qualifier: with 8 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 7.5 (in) Ring Gear, with 9 (in) Ring Gear); 2010-2018 Lexus GX460 (Front Left) (Qualifier: with 9 (in) Ring Gear, with Toyota Axle, with 8 (in) Ring Gear, Independent Front Suspension); 2009-2016 Lexus LX570 (Front Left) (Qualifier: with 9 (in) Ring Gear, with Toyota Axle); 1995-2019 Toyota 4Runner (Front Left) (Drive: 4WD / Qualifier: with 7.5 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 8 (in) Ring Gear); 2003-2019 Toyota Land Cruiser (Front Left) (Qualifier: with 8 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 9 (in) Ring Gear); 2000-2019 Toyota Tundra (Front Left) (Drive: 4WD / Qualifier: with 7.5 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 9 (in) Ring Gear); 2001-2019 Toyota Sequoia (Front Left) (Drive: 4WD / Qualifier: with 7.5 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 8 (in) Ring Gear, with 9 (in) Ring Gear); 1995-2019 Toyota Tacoma (Front Left) (Drive: 4WD / Qualifier: with 7.5 (in) Ring Gear, with Toyota Axle, Independent Front Suspension, with 8 (in) Ring Gear); 2007-2014 Toyota FJ Cruiser (Front Left) (Drive: 4WD / Qualifier: with 8 (in) Ring Gear, with Toyota Axle, Independent Front Suspension)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.850 IN
Inside Diameter	47.000 MM
Outside Diameter	2.726 IN
Outside Diameter	69.240 MM
Width	0.394 IN
Width	10.000 MM
Material	Nitrile
Helix Type	Bi-Directional Lip Design
Part Description	Oil Seal
Series	710500
Shaft Diameter	1.850 IN
Shaft Diameter	47.000 MM
Thickness	0.394 IN
Thickness	10.000 MM
Type	40
Unit of Dimension	Metric
Housing Bore	2.717 IN
Housing Bore	69.000 MM
Overall Width with Side Lip	16.500 MM
Overall Width with Side Lip	0.650 in
Grade Type	Premium

Additional Information

Country of Origin (Primary)	JP
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00614046957459
