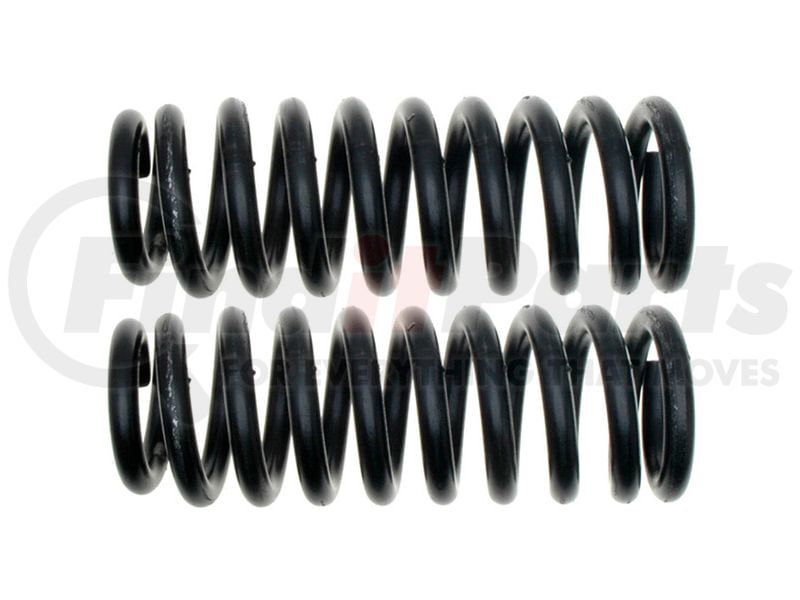

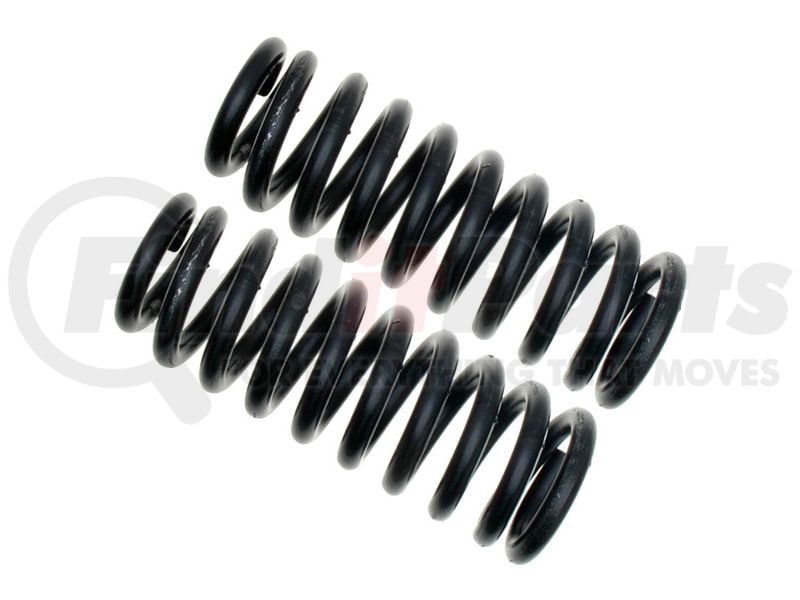

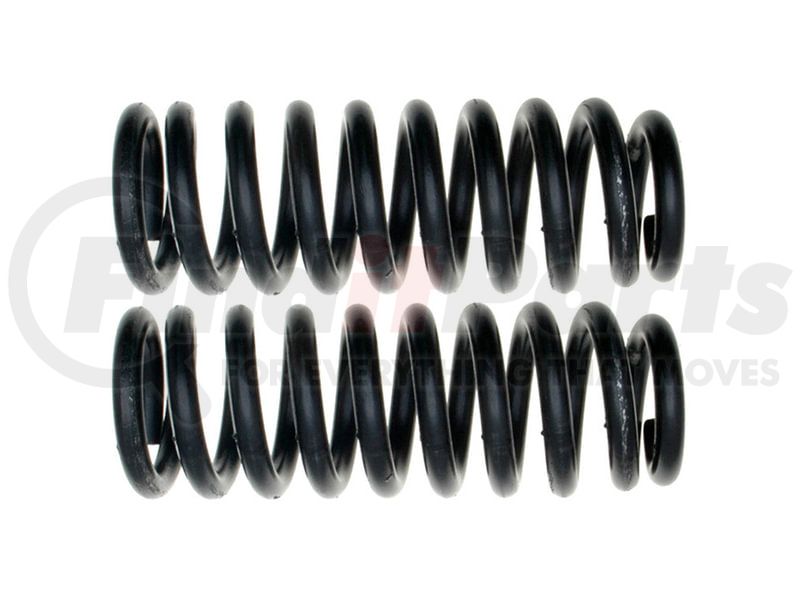

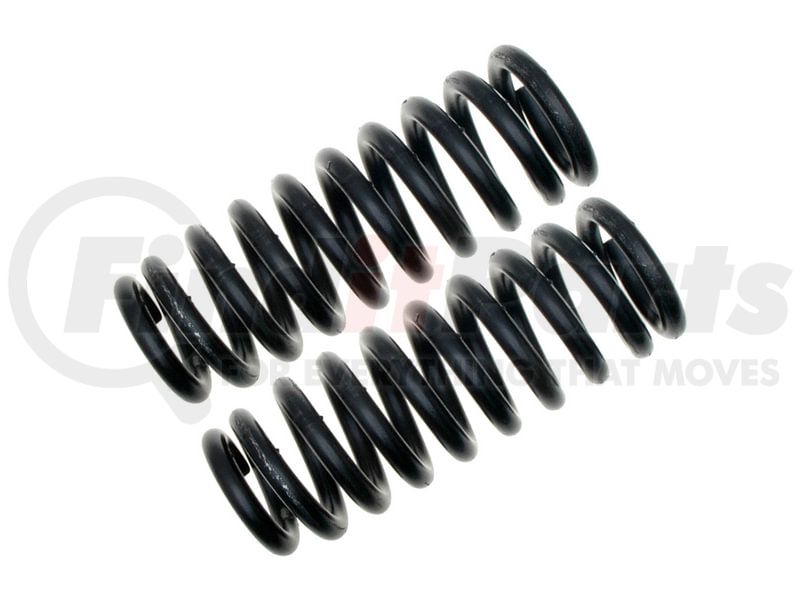

Name: Moog 81094 Coil Spring Set
SKU: 81094
Price: 289.54 USD
Availability: OutOfStock

MOOG part description

MOOG® coil spring sets restore proper handling, reduce body sway and bring ride height to OE specifications.

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR Crew Chiefs.

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR Crew Chiefs.
Powder-coated to protect against corrosion
Designed to lower stresses for longer service life
All coil springs are 100% load tested
Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Part Specifications

COIL SPRING ATTRIBUTES

ID - Inches	3.14
ID - MM	79.80
Bar Diameter - Inches	0.67
Bar Diameter - MM	17
Spring Rate - lbs per inch	595
Load - lbs	0
Free Height - Inches	13.18
Free Height - MM	334.90
End Type 1	Pigtail
End Type 2	Squared
Spring Type	Constant Rate

Product Description

Coil Spring Set

Features & Benefits

100% Load tested
Easy to install
Provides like-new steering
Designed to lower stresses for longer service life
Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Product Attributes

Wire Diameter	0.67 IN
Wire Diameter	17.00 MM
Spring Color	Black
Front Spring Outside Diameter	4.480 IN
Front Spring Relaxed Length	13.18 IN
Front Spring Relaxed Length	334.90 MM
Front Spring Compressed Length	10.000 IN
Rear Spring Relaxed Length	13.18 IN
Rear Spring Relaxed Length	334.90 MM
Rear Spring Compressed Length	10.000 IN
Rear Spring Outside Diameter	4.480 IN
Part Description	Coil Spring Set

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	7320200020
Harmonized Tariff Code (Schedule B)	7320201000
Harmonized Tariff Code (HTS)	7320201000
UPC	00080066431376
VMRS Code	016002002
UNSPSC	31161903

Part Interchanges

MOOG 81094 Cross Reference

We have 1 alternatives for the 81094 by MOOG:

080066431376

Fits Vehicles

Toyota 4Runner (1996-2002)
