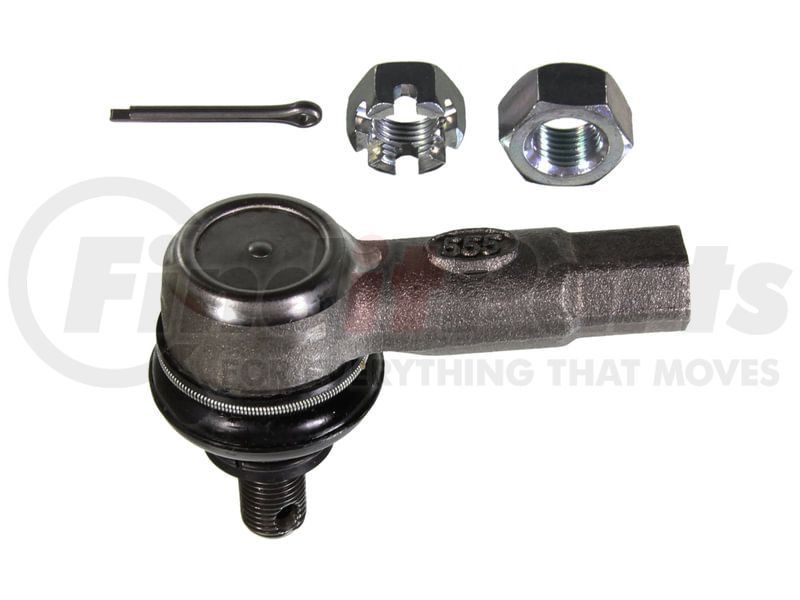

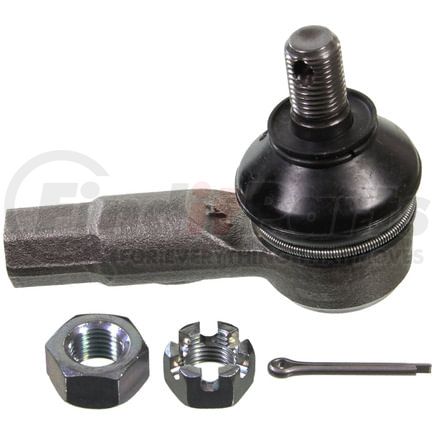

Moog ES800329 - Steering Tie Rod End
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MOOG part description
Product Description
Tie Rod End
Features & Benefits
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Product Attributes
| End 1 Gender | Female |
| End 2 Gender | Female |
| Type | Straight |
| End 2 Thread Diameter | 12.0 MM |
| End 2 Thread Pitch | 1.3 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 2.800 IN |
| End 1 Thread Diameter | 12.0 MM |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Remanufactured Part | N |
| UPC | 00080066431550 |
Part Interchanges
- Suzuki 4881050G10
- TRW ES800329
- Beck/Arnley 101-3932
- Beck/Arnley 101-4213
- ACDelco 45A0574
- ACDelco 46A0574A
- Raybestos Brakes 401-1574
- Raybestos Brakes 401-1574B
- Raybestos Brakes 4012019
- Autospecialty 350007
- Autospecialty 350008
- Mevotech MES3043RL
- Mevotech MES3419
- Mevotech PES3043RL
- Mevotech PES3419
- Centric Parts 612.62078
- Centric Parts 61362078
- General Motors 91173973
- General Motors 96060603
- Suzuki 48810-60B00
- Suzuki 48810-82000
- MAS Industries T3043
- MAS Industries T3419
- MAS Industries TO73055
- Dorman 534-475
- TRW Steering and Suspension Parts ES3110
- TRW Steering and Suspension Parts ES800329
- NAPA 269-2910
- NAPA ES3110
Fits Vehicles
- Pontiac Firefly (1985-1991, 1995-1996)
- Geo Metro (1989-1997)
- Chevrolet Sprint (1985-1991)
- Chevrolet Metro (2001)
- Suzuki Swift (1999-2001)
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
