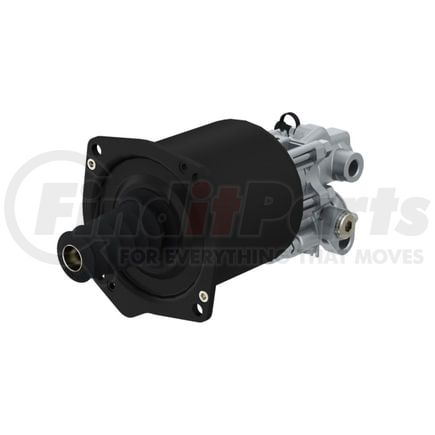

WABCO 970 051 128 0 - Clutch Servo
$1,01399
14 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Servo Clutch
Product Attributes
| Max. operating pressure | 10.0 bar |
| Length | 286 mm |
| Mounting | 4x Ø 9.0 mm |
| Stroke | 58.5 mm |
| Temperature Range | -40°C to +80°C |
| Distance Between Holes | 130 mm |
| Port thread 31 | Flap Exhaust |
| Size | 290 x 150 x 150 |
| Port Thread 1-4 | M14 x 1.5 ( K ) |
| Calculated Volume (dm³) | 6.525 |
| Port thread 32 | Ø 8.0 mm |
| Push-rod thread | Hole Ø 12.1 mm |
| Test connection | M16 x 1.5 (J) |
| Port thread 11 | M16 x 1.5 |
| Weight | 7.066 |
| Medium | Brake fluid SAE J 1703 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
