STANDARD IGNITION part description

Product Description

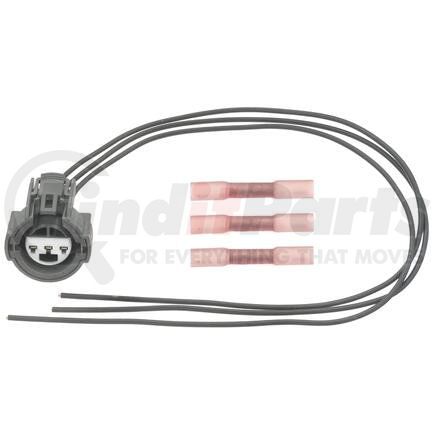

Map Sensor Connector

Features & Benefits

  • Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
  • The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
  • The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job.

Product Attributes

Bend Angle (Deg.) 0
Connector Gender Male
Connector Quantity 1
Connector Shape Round
Gauge 18 ga.
Harness Length - cm 32
Harness Length - inches 13
Housing Length (in) 1
Terminal Gender Female
Terminal Quantity 3
Terminal Type Blade
Wire Quantity 3
Harness Length (mm.) 320
Water Resistant No
Weatherproof Sealed Yes
Wire Gauge (ga) 18

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00033086609898

Part Interchanges

Fits Vehicles

  • Honda Insight (2000-2005)
  • Honda Pilot (2003-2004)
  • Honda S2000 (2000-2005)
  • Honda Prelude (1992-2001)
  • Honda Odyssey (1995-2004)
  • Honda CRX (1988-1991)
  • Honda CR-V (1997-2004)
  • Honda Civic del Sol (1993-1997)
  • Honda Civic (1988-2005)
  • Honda Accord (1990-2002)
  • Acura Vigor (1992-1994)
  • Acura TL (1995-2003, 2005)
  • Acura RL (1996-2004)
  • Acura NSX (1991-2005)
  • Acura MDX (2001-2004)
  • Acura Legend (1991-1995)
  • Acura Integra (1988-2001)
  • Acura CL (1997-1999, 2001-2003)
  • Isuzu Oasis (1996-1999)
