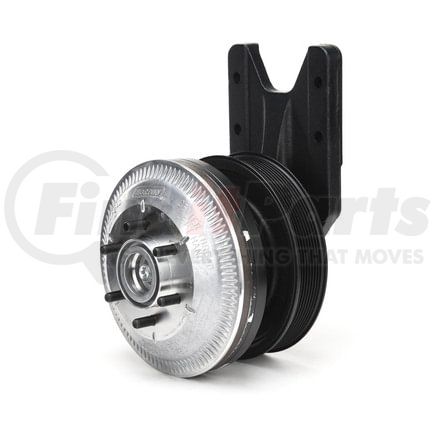

(888) 312-8812 Login SignupHORTON 99A8652 Air Operated Fan Clutch DriveMaster Advantage
Tap to view 3 more
MSRP: $2,706.25
$1,84899
Save $857.26
+$533.33 core deposit
Total price w/ core: $2,382.32
In Stock
Get it by Monday, Jul 20
HORTON 99A8652 Part Description
Manufacturer
Product Description
DM Advantage Fan Clutch
Features & Benefits
- Air-operated mechanism engages the fan based on system demand
- Clutch assembly connects the fan to the drive system when activated
- Heavy-duty housing supports use in engine cooling environments
- Fan drive interface links directly to the cooling fan assembly
- Internal components manage engagement and disengagement cycles
Horton Air Operated Fan Clutch
When engine temperatures rise during heavy operation or slow-moving traffic, the Horton Air Operated Fan Clutch helps bring airflow back into balance. This air-operated unit engages the cooling fan when needed, allowing more air to pass through the radiator. It responds to system input so the fan activates at the right time instead of running constantly. This approach helps manage airflow demand without placing unnecessary load on the engine. Because airflow control is key in engine cooling systems, the Horton 99A8652 supports that function with its DriveMaster Advantage setup.
HORTON 99A8652 Specifications
Product Attributes
| BELT CONFIGURATION | - |
| BACK PULLEY DIAMETER | 7.49 |
| Center of JB To Top Right Mounting Hole | - |
| HORIZONTAL MOUNTING DISTANCE | 4.41 |
| VERTICAL MOUNTING DISTANCE | 2.01 |
| FAN PILOT DIAMETER | 2.56 |
| Fan Bolt Circle | 3.5 |
| FRONT PULLEY DIAMETER | - |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A8652 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 99A8652 Cross References
| Brand | Part Number |
|---|---|
| G2MZ1104AH, HOR99A8652 | |
| Daimler Truck North America | HOR 99A8652X |
| Freightliner | HOR 99A8652, HOR 99A8652X |
| Horton | 79A8652, 98A8652 |
| KIT MASTERS | 98652 |
| MCI | HOR99A8652 |
| Mack | 3912-99A8652 |
| NAVISTAR | FLT98652 |
| NAVISTARPFC | FLT98652 |
| Navistar | HOR99A8652, ZBH99A8652 |
| Paccar Parts | 99A8652H0R |
