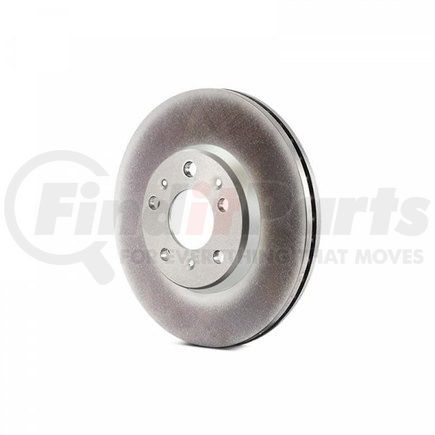

(888) 312-8812 Login SignupCENTRIC 320.20022H Centric GCX Rotor with Full Coating and High Carbon Content
$7299
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 16
CENTRIC 320.20022H Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.20022H Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 6.890 |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 15.150 |
| Vane Style [cntrc] | Straight |
| Stud/Lug Hole Diameter | 0.551 IN |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Center Hole Diameter | 64.300 MM |
| Center Hole Diameter | 2.531 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.835 IN |
| Outside Diameter | 326.000 MM |
| Overall Height | 1.508 IN |
| Overall Height | 38.300 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 19.900 MM |
| Nominal Thickness | 0.783 IN |
| Discard Thickness | 18.000 MM |
| Discard Thickness | 0.709 IN |
CENTRIC 320.20022H Cross References
CENTRIC 320.20022H Fits Vehicles
- Jaguar S-Type (2006-2008)
- Jaguar XF (2009-2016)
- Jaguar XJ (2010-2015)
- Jaguar XKR (2007-2009)
- Jaguar XK (2007-2015)
- Jaguar XJR (2006-2009)
- Jaguar XJ8 (2006-2009)
- Jaguar Vanden Plas (2006-2009)
- Jaguar Super V8 (2006-2009)
