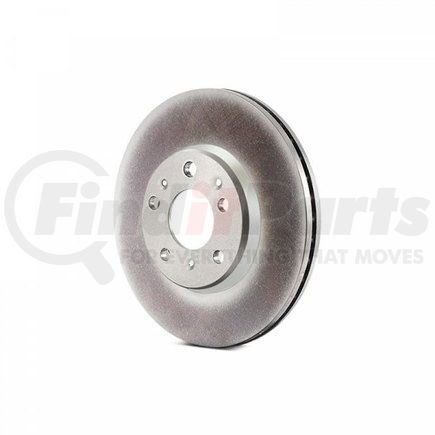

Centric 320.61120H - Centric GCX Rotor with Full Coating and High Carbon Content
$10999
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 12.300 |
| OEM Vane Count [cntrc] | 47 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] Mm | 159.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 27.100 |
| Hat Id [cntrc] In | 6.283 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.500 MM |
| Nominal Thickness | 1.260 IN |
| Nominal Thickness | 32.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 52.700 MM |
| Overall Height | 2.075 IN |
| Outside Diameter | 345.000 MM |
| Outside Diameter | 13.583 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 63.600 MM |
| Center Hole Diameter | 2.504 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.700 MM |
| Stud/Lug Hole Diameter | 0.618 IN |
Fits Vehicles
- Lincoln MKX (2016-2018)
- Ford Edge (2015-2022)
- Lincoln Continental (2017-2020)
- Lincoln Nautilus (2019-2023)
- Lincoln MKZ (2017-2020)
- Ford Fusion (2017-2019)
