ADVICS E6F117U Part Description
Manufacturer
Product Description

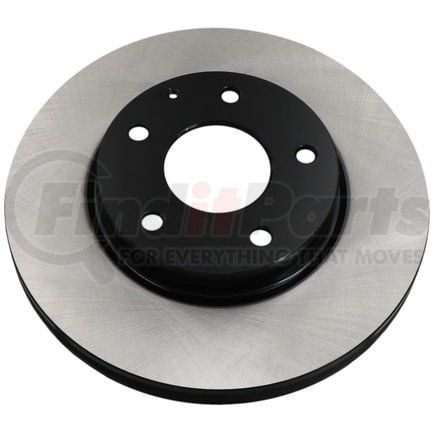

ADVICS OE Replacement Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS E6F117U Specifications
Product Attributes
| Material | High Carbon |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 0.984 IN |
| Brake Surface Finish | Non-Directional |
| Overall Height | 2.028 IN |
| Outside Diameter | 11.024 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 68 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| 9448 | 5 EA |
| Discard Thickness | 23.0 MM |
| Nominal Thickness | 25.0 MM |
| Overall Height | 51.5 MM |
| Outside Diameter | 280.0 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372117107 |
ADVICS E6F117U Cross References
| Brand | Part Number |
|---|---|
| AISIN | E6F117U |
| Centric Parts | 120.45088 |
| Mazda | B45A33251A, BJS733251A, BKC333251 |
| N/A | 31800, 18A81503AC, 981503, JBR1599, 1407-507589, 77109DL, YH507589, BR901286, 901286, E6F117U, 604-80053, 121.45088, 320.45088F |
| Raybestos Brakes | 981503FZN |
ADVICS E6F117U Fits Vehicles
- Mazda CX-3 (2016-2021)
- Mazda 3 Sport (2014-2018)
- Mazda 3 (2014-2018)
