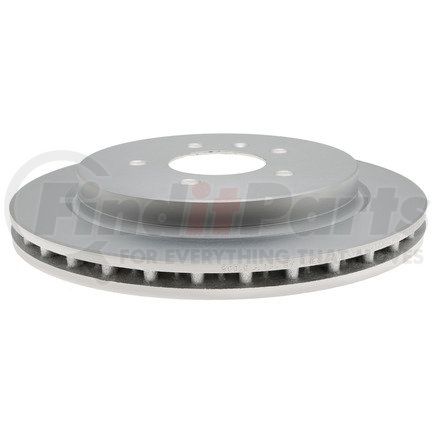

Centric 320.62071F - Centric GCX Rotor with Full Coating
$5799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| Weight [cntrc] Kgs | 7.050 |
| Max Pb Drum Dia [cntrc] In | 7.598 |
| Max Pb Drum Dia [cntrc] Mm | 193.000 |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 15.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Pillar |
| Stud/Lug Hole Diameter | 0.504 IN |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Center Hole Diameter | 70.500 MM |
| Center Hole Diameter | 2.776 IN |
| Bearings Included | No |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 298.000 MM |
| Outside Diameter | 11.732 IN |
| Overall Height | 1.890 IN |
| Overall Height | 48.000 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.000 MM |
| Discard Thickness | 24.000 MM |
| Discard Thickness | 0.945 IN |
Fits Vehicles
- Cadillac STS (2005-2011)
- Cadillac CTS (2003-2007)
