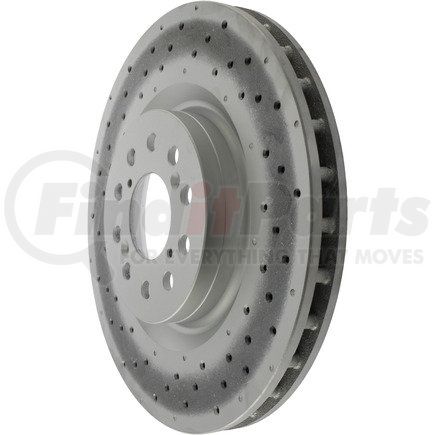

(888) 312-8812 Login SignupCENTRIC 320.40098F Centric GCX Rotor with Full Coating
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.40098F Part Description
CENTRIC 320.40098F Specifications
Product Attributes
| Misc Holes [cntrc] | 9 |
| Vane Style [cntrc] | Pillar |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.580 |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 158.300 |
| OEM Vane Count [cntrc] | 93 |
| Weight [cntrc] Lbs | 25.500 |
| Hat Id [cntrc] In | 6.232 |
| Discard Thickness | 30.000 MM |
| Discard Thickness | 1.181 IN |
| Nominal Thickness | 1.260 IN |
| Nominal Thickness | 32.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 54.700 MM |
| Overall Height | 2.154 IN |
| Outside Diameter | 13.780 IN |
| Outside Diameter | 350.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.000 MM |
| Center Hole Diameter | 2.756 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
CENTRIC 320.40098F Fits Vehicles
- Honda Civic (2017-2020)
