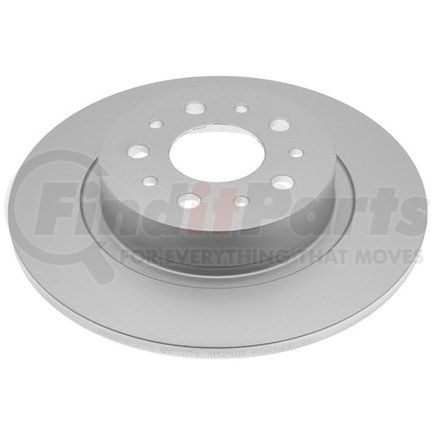

(888) 312-8812 Login SignupCENTRIC 320.04003F Centric GCX Rotor with Full Coating
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.04003F Part Description
CENTRIC 320.04003F Specifications
Product Attributes
| Hat Id [cntrc] In | 5.307 |
| Hat Id [cntrc] Mm | 134.800 |
| Misc Holes [cntrc] | 5 |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 8.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 3.820 |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 40.600 MM |
| Overall Height | 1.598 IN |
| Outside Diameter | 264.000 MM |
| Outside Diameter | 10.394 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 59.000 MM |
| Center Hole Diameter | 2.323 IN |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
CENTRIC 320.04003F Fits Vehicles
- Fiat 500L (2014-2020)
