(888) 312-8812 Login SignupDORMAN BJ90407 Suspension Ball Joint
Tap to view 3 more
$123.61
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

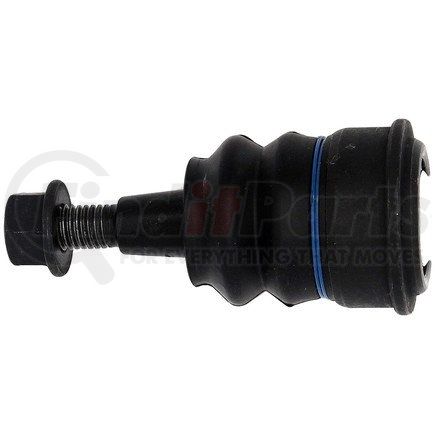

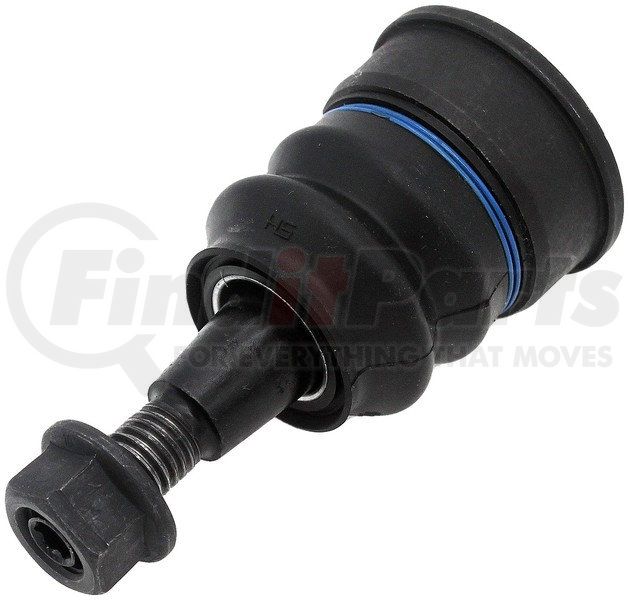

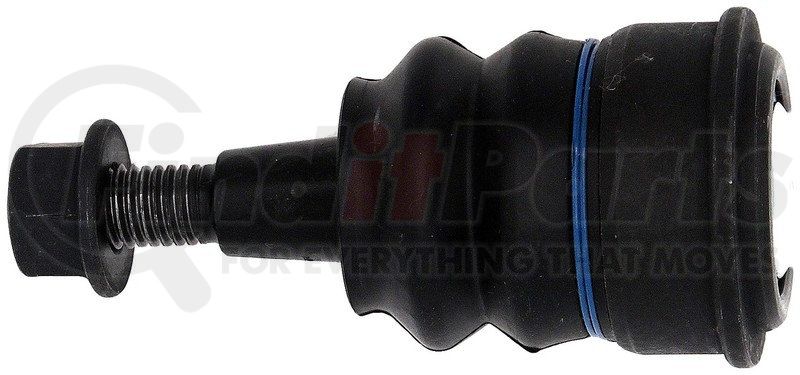

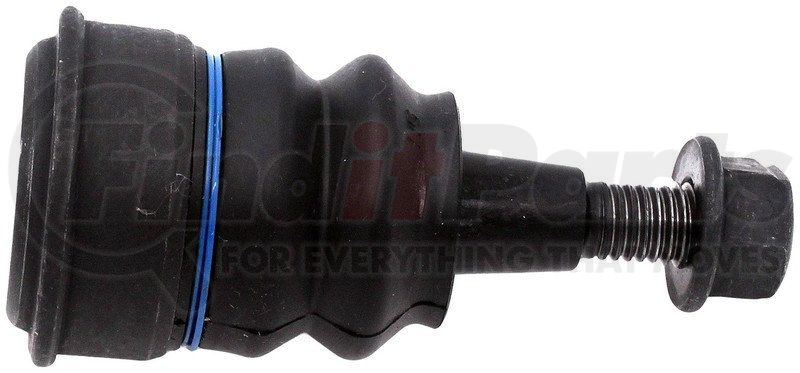

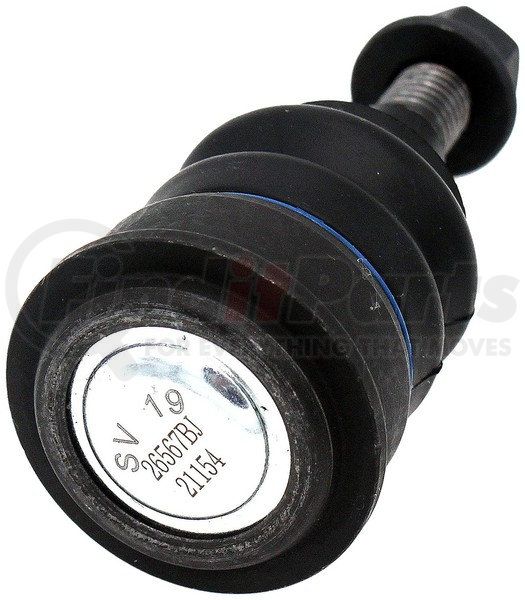

DORMAN BJ90407 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Cadillac 2020-15, Chevrolet 2020-14, GMC 2020-14
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ90407 Specifications
Product Attributes
| Ball Joint Assembly | Oui |
| Washers Included | Non |
| Type | Presionar hacia adentro |
| Nuts Included | Oui |
| Cotter Pin Included | Non |
| Mounting Hole Quantity | 0 |
| Cotter Pin Hole | Non |
| Adjustable | Non |
| Mounting Hardware Included | Oui |
| Greaseable | Non |
| Mounting Bolt Length | 25.4 MM |
| Stud Thread Length | 22.95 MM |
| Wrench Size | 12 mm MM |
| Stud Type | Cónico |
| Mounting Type | A presión |
| Distance Between Mounting Holes | 28 MM |
| Dust Boot Material | Policloropreno |
| Bushing Quantity | 0 |
| Mounting Bolt Head Diameter | 11.7 MM |
| Mounting Bolts Included | Non |
| Mounting Bolt Thread Pitch | 24 MM |
| Mounting Bolt Thread Length | 25.4 MM |
| Mounting Bolt Thread Diameter | 0.312 IN |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 14.65 MM |
| Stud Tapered End 1 Diameter | 12 MM |
| Stud Thread Pitch | 1.75 MM |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 1 Nut |
| Thread Pitch | 1.75 mm |
| Material | Acero |
| Maximum Outside Diameter | 49 MM |
| Stud Thread Diameter | 0.5 IN |
| Castle Nut Included | Non |
| Grease Fitting Included | Non |
| Suspension Grade Type | Reemplazo estándar |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Length | 107.61 MM |
| Color | Noir |
| Width | 49 MM |
| Height | 107.61 MM |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Housing Press Fit Diameter | 45.5 mm MM |
| Thread Pitch | 1.75 mm mm |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Length | 107.61 mm |
| Width | 49 mm |
| Outside Diameter | 49 mm |
| Height | 107.61 mm |
| Bearing Type | Polímero |
| Boot Color | Noir |
| Wrench Size | 12 mm |
| Maximum Outside Diameter | 49 mm |
| Reinforced | Non |
| Stud Thread Diameter | 12 mm |
| Pre-Greased | Oui |
| Attachments Included | Oui |
| Grade Type | Reemplazo estándar |
| Stud Thread Length | 22.95 mm |
| Stud Taper Per Foot | 2 in |
| Stud Tapered End 2 Diameter | 14.65 mm |
| Stud Tapered End 1 Diameter | 12 mm |
| Stud Thread Pitch | 1.75 mm |
| Wear Indicator Included | Non |
| Housing Press Fit Diameter | 45.5 mm |
| Retaining Ring Included | Non |
| Outside Diameter | 49 MM |
| Stud Thread Diameter | 12 MM |
| Attachments Included | Oui |
| Stud Thread Pitch | 1.75 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Nuts Included | Oui |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00889245881205 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ90407 Cross References
DORMAN BJ90407 Fits Vehicles
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019)
- GMC Sierra 1500 (2014-2018)
- GMC Yukon (2015-2020)
- GMC Yukon XL (2015-2020)
- Chevrolet Tahoe (2016-2020)
- Chevrolet Cheyenne (2014-2018)
- GMC Sierra (2014-2018)
- Cadillac Escalade ESV (2015-2020)
- Chevrolet Suburban (2015-2020)
- Cadillac Escalade (2015-2020)
- Chevrolet Silverado 1500 (2014-2018)
