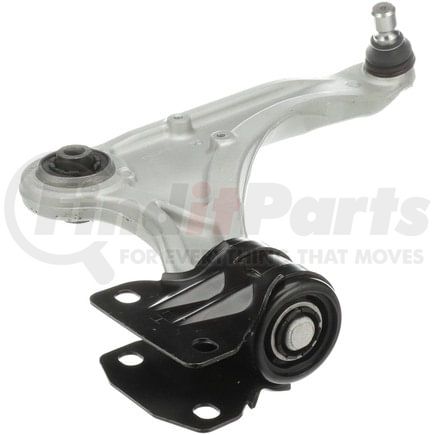

(888) 312-8812 Login SignupDELPHI TC7865 Control Arm and Ball Joint Assembly
Tap to view 13 more
$16399
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
DELPHI TC7865 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7865 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower, Rear Right Lower. For the position specific to your vehicle, refer to the Applications. |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 102.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.945 IN |
| Ball Joint Thread Diameter | 24.0 MM |
| Ball Joint Stud Length | 3.280 IN |
| Ball Joint Stud Length | 83.30 MM |
| Control Arm Maximum Length | 19.764 IN |
| Control Arm Maximum Length | 502.00 MM |
| Mounting Hole Diameter | 0.638 IN |
| Mounting Hole Diameter | 16.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 4.016 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604366561 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC7865 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB86014PR, 520-124, CB86014 |
| Ford | 1927131 |
| MEVOTECH | CMS401184 |
| N/A | RK623000, CMS401184, DG9Z 3078-A, CB86013, 520-124, GS401184, DG9Z 3078-B, FG9Z 3078-A, FG9Z 3078-C, GS7Z-3078-A, GS7Z-3078-B, CK623000, 622.61075, 520123 |
DELPHI TC7865 Fits Vehicles
- Ford SSV Plug-In Hybrid (2019-2020)
- Ford Police Responder Hybrid (2019-2020)
- Lincoln MKZ (2013-2020)
- Ford Fusion (2013-2020)
