NEOTEK part description

Product Description

Premium Fully Coated Rotor

Application Summary

  • Blue Bird All American FE
  • Blue Bird TC1000
  • Blue Bird TC2000
  • Ford F650
  • Ford F750
  • Freightliner FS65
  • Freightliner M2 100
  • Freightliner M2 106
  • Freightliner MB60
  • Freightliner MB70
  • IC Corporation BE Commercial Bus
  • IC Corporation BE School Bus
  • IC Corporation CE Commercial
  • IC Corporation CE Integrated
  • IC Corporation CE School Bus
  • IC Corporation HC Integrated Commercial
  • IC Corporation RE Commercial
  • IC Corporation RE School Bus
  • International 1654
  • International 1724
  • International 1754
  • International 1824
  • International 1854
  • International 1954
  • International 1955
  • International 3000
  • International 3200
  • International 3300
  • International 3400
  • International 3600
  • International 3700
  • International 3800
  • International 4100
  • International 4200
  • International 4300
  • International 4400
  • International 4600
  • International 4700
  • International 4800
  • International 4900
  • International 7100
  • International 1452SC
  • International 1652SC
  • International 1652UPS
  • International 1924 S
  • International 1925 S
  • International 2276 S
  • International 2375 S
  • International 3000FE
  • International 3000IC
  • International 3000RE
  • International 3900FC
  • International 4100 SBA
  • International 4200LP
  • International 4300LP
  • International 4400LP
  • International 4600LP
  • International 4600UH
  • International 4700LP
  • International 4700LPX
  • International F1924
  • International F1954
  • International Genesis RE
  • International M1400 Metro II
  • International M1600 Metro II
  • International MXT
  • International RXT

Features & Benefits

  • Best-in-class hat-type brake rotor that meets the demands of hydraulic brakes
  • Best-in-class hat-type brake rotor that meets the demands of hydraulic brakes
  • Manufactured with high carbon G11H18 SAE-standard material for maximum braking performance
  • Manufactured with high carbon G11H18 SAE-standard material for maximum braking performance
  • 100% mill balanced to a specification that is tighter by over 50% than industry-standard rotors
  • 100% mill balanced to a specification that is tighter by over 50% than industry-standard rotors
  • Non-braking surfaces are provided with environmentally friendly coating
  • Non-braking surfaces are provided with environmentally friendly coating
  • CNC fine-turn finish for the same appearance as OE part, while minimizing surface finish roughness
  • CNC fine-turn finish for the same appearance as OE part, while minimizing surface finish roughness
  • Exposed surfaces are provided with dry rust inhibitor for outstanding rust resistance
  • Exposed surfaces are provided with dry rust inhibitor for outstanding rust resistance
  • Showcases OE-level design, vane configuration, and product weight
  • Showcases OE-level design, vane configuration, and product weight
  • Shrink-wrapped and comes right out of the box ready for installation
  • Shrink-wrapped and comes right out of the box ready for installation

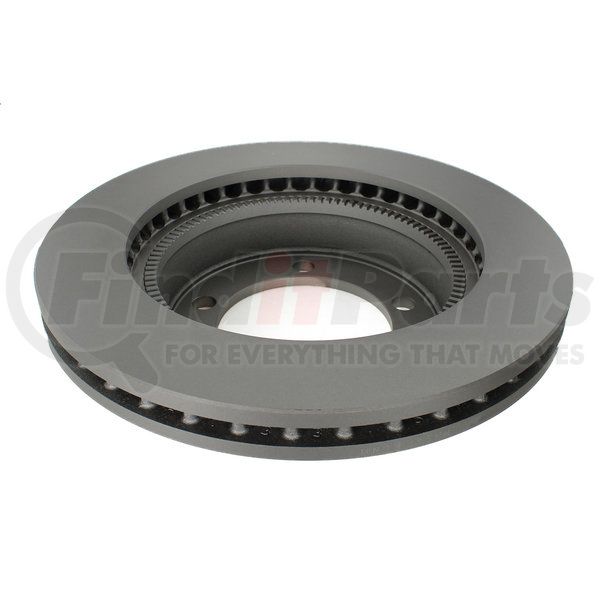

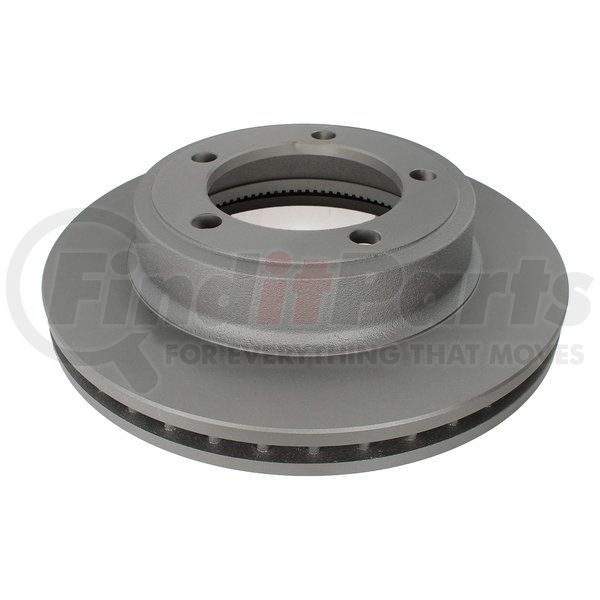

Neotek Premium Brake Rotor

Machined to OE/OES level tolerances, the Neotek Premium brake rotor guarantees consistent quality and peak efficiency. It is crafted from premium raw materials and under tightly controlled manufacturing operations in the company’s world-class facility to ensure excellent workmanship and reliability. Each rotor is tensile-strength and hardness tested to meet G11H18 standards.

Product Attributes

Mounting Bolt Hole Circle Diameter 6.75 IN
Hardware Included No
Solid Or Vented Type Rotor Vented
ABS Tone Ring Included Yes
Rust Resistant Coating Yes

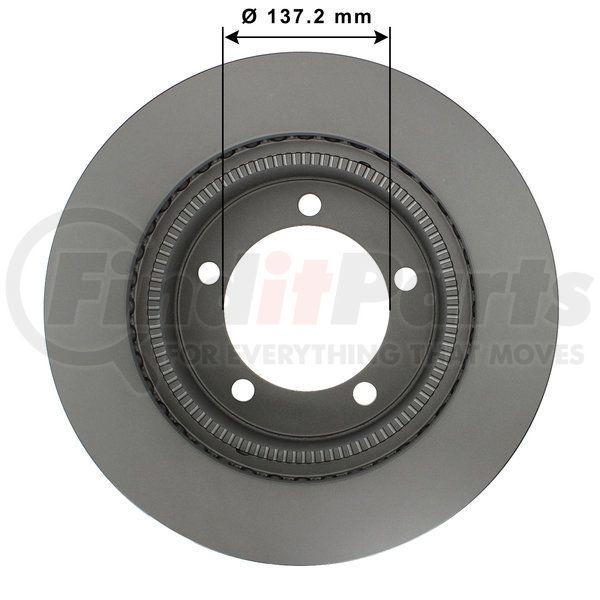

Center Hole Diameter 5.4 IN
Mounting Bolt Hole Diameter 0.76 IN

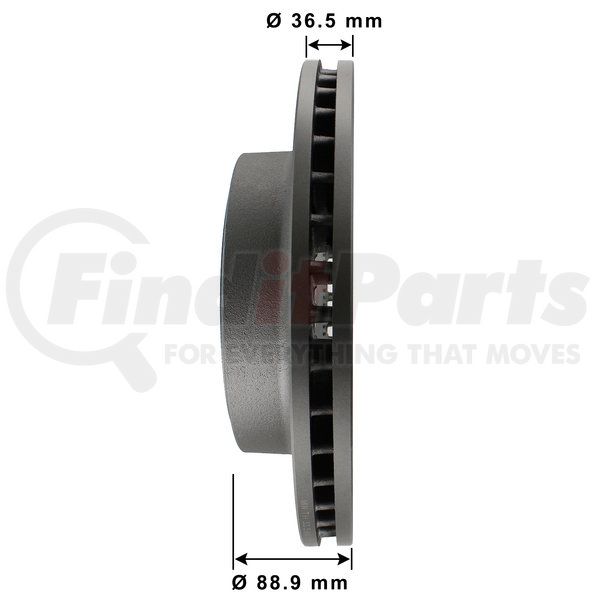

Height 3.5 IN
Surface Type Smooth
Mounting Bolt Hole Quantity 5
Construction Hat

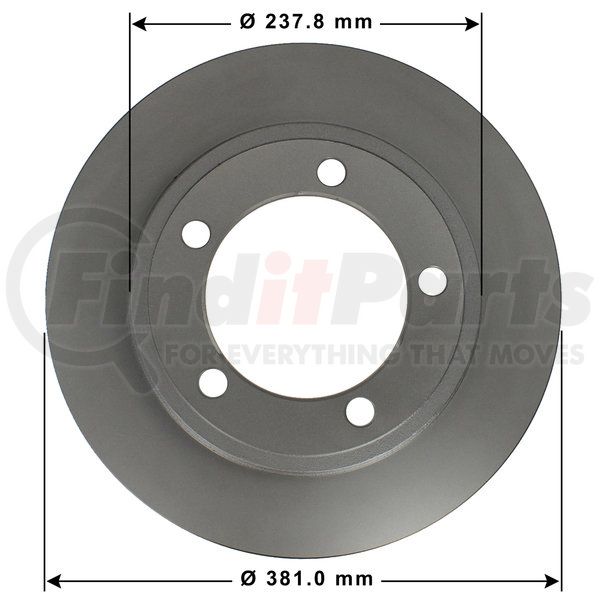

Outside Diameter 15 IN
Nominal Thickness 1.44 IN
Discard Thickness 1.32 IN
Brake Type Hydraulic

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
UPC 00875514007506
VMRS Code 013017001
UNSPSC 25171715

Part Interchanges

Experience the difference of better pedal feel and more controlled stops with Neotek®. Since its inception in 1983, Neotek has been supplying the OES and US aftermarket with top-quality brake products that strictly follow industry standards. For over 30 years, this global leader in the manufacture and distribution of brake drums and rotors guarantees engineering expertise and 99% vehicle coverage. Neotek’s fulfillment and engineering center is situated in its headquarters at Memphis, TN. This company takes pride in its various capabilities, such as award-winning customer service, category management, Electronic Data Interchange (EDI), customer-specific material options, collaborative planning and forecasting, and many others. All these capabilities contribute to the company’s growth and its proficiency in developing and producing Neotek brake products that ensure safe and smooth braking and customer satisfaction.
